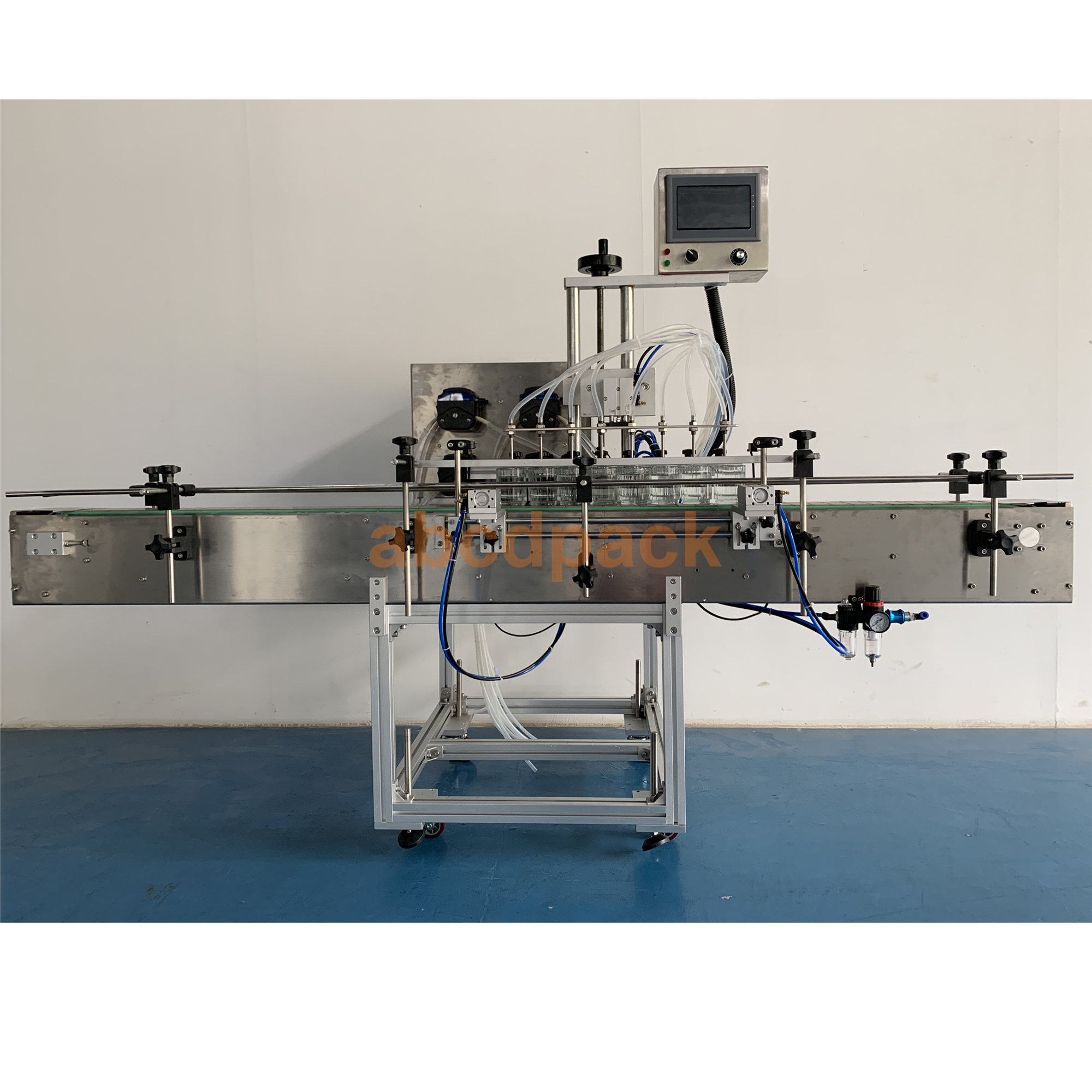

- Product name：Computer peristaltic pump filling machine
- Model No：AXGZ-RR
- Features：

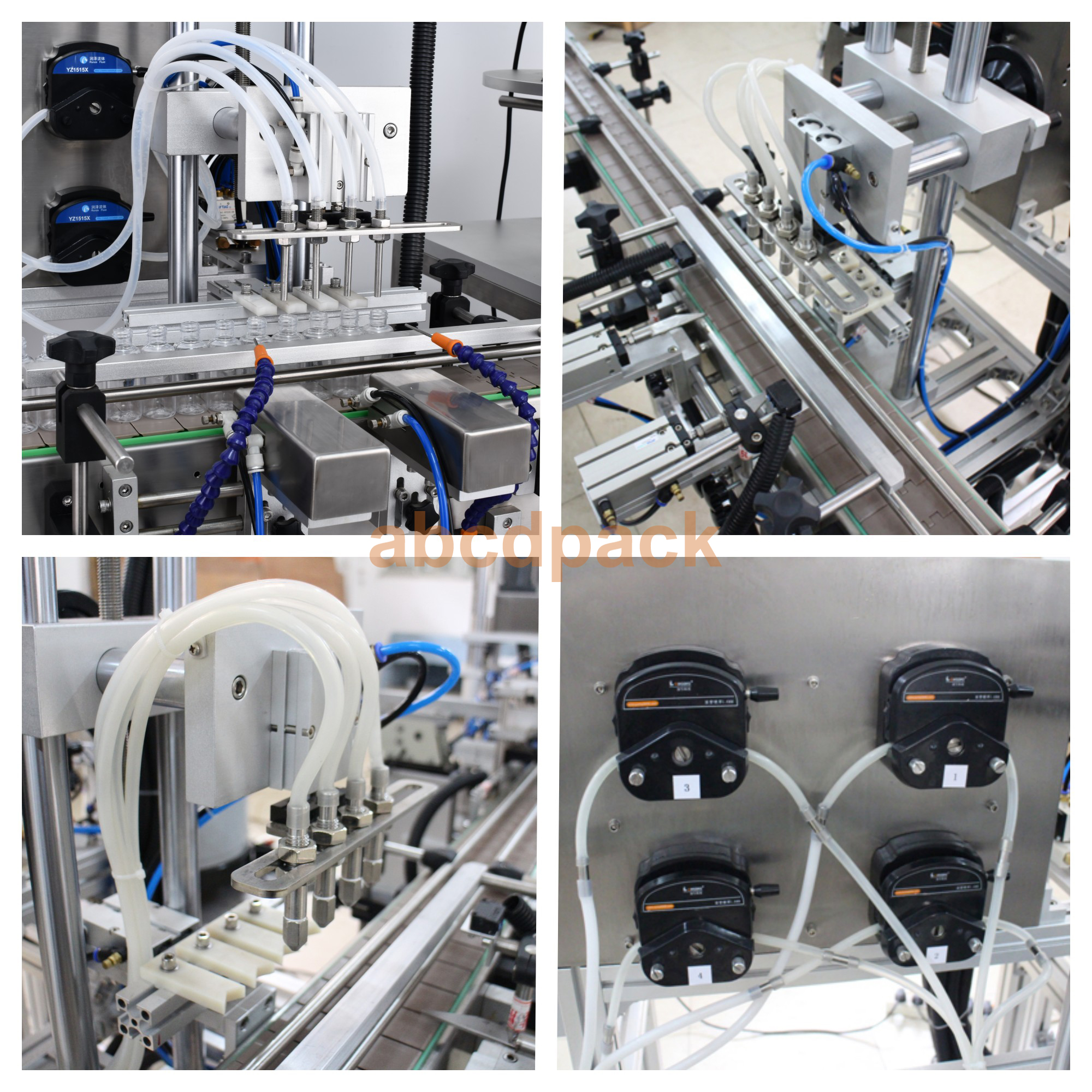

1. Can be expanded into a multichannel filling system for mass production. 2. The filling channel of each peristaltic pump can be independently controlled, which is convenient for users to operate flexibly. 3. The peristaltic pump has a suck-back function to prevent liquid dripping from the outlet tube when the peristaltic pump is stopped. 4. Each channel of the peristaltic pump is independent of each other, and the control components adopt the plug-in structure, which is convenient for maintenance and repair. 5. Able to correct the flow automatically, making the volume more accurate 6. With no bottle no filling function.
Product specifications
|
Data sheets |
Details |
|||
|
Name and model |
AXGZ-RR-2 |
AXGZ-RR-4 |
AXGZ-RR-6 |
AXGZ-RR-8 |
|
Max filling speed (bottles/min) |
10~20 |
10~25 |
10~30 |
10~35 |
|
Power (Kw) |
0.8 |
1.0 |
1.2 |
1.4 |
|
Net weight (Kg) |
100 |
120 |
140 |
140 |
|
Bottle diameter size |
Φ20 ≤D≤Φ100mm |
|||
|
Bottle height size |
30≤H≤220 mm |
|||
|
Filling accuracy |
±1mm |
|||
|
Voltage |
AC220V, single phase, 50/60HZ |
|||
|
Working pressure |
0.6MP |
|||
|
Air consumption |
700L one hour (speed 1500 bottles/hour) |
|||
|
Machine size(L*W*H) |
2000*800*1500mm |
|||
|
Machine direction |
From left to right |
|||
|
Operation process |
Put products on conveyer—>Block bottles—> sensor count the empty bottles—> bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles |
|||
