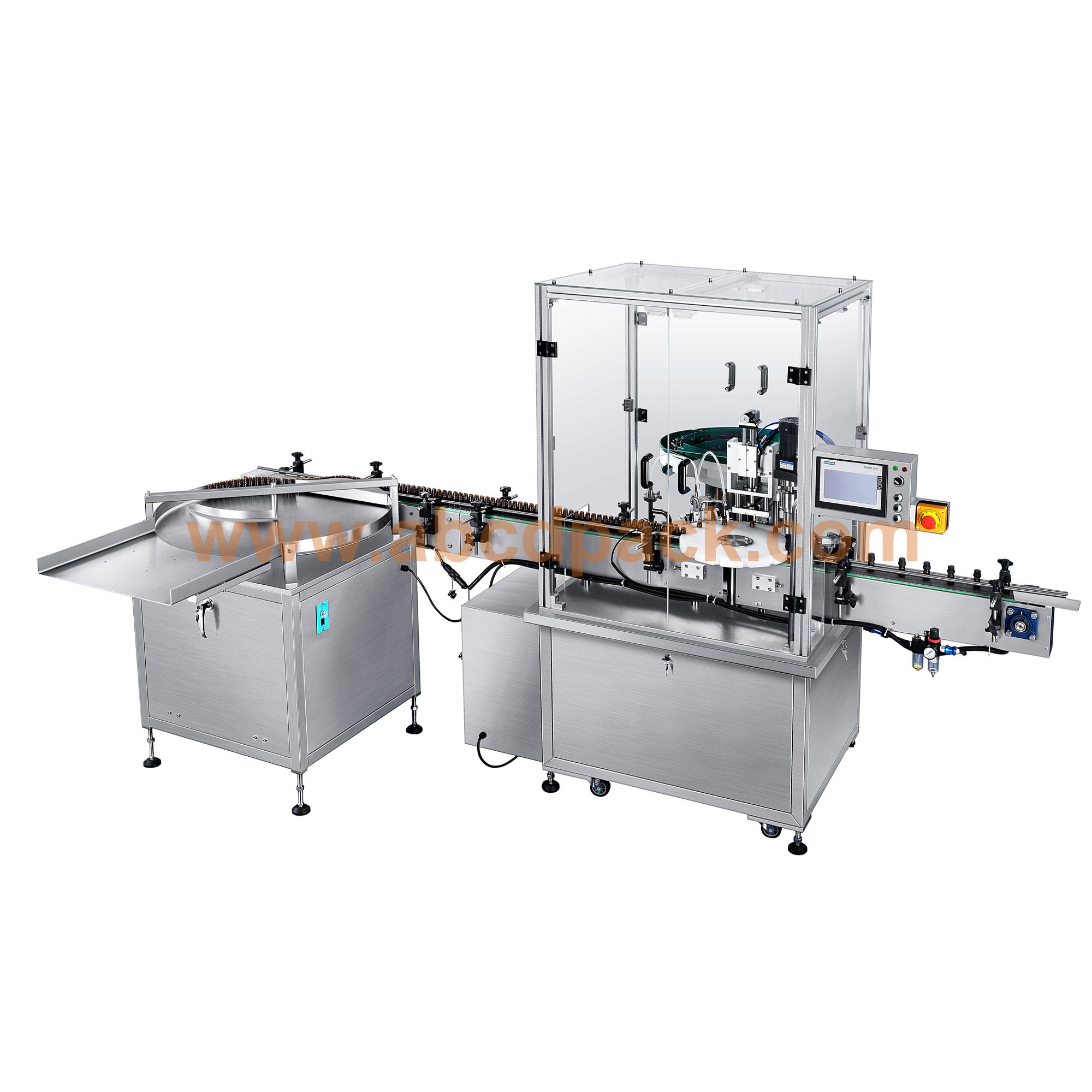

Product name:Monoblock filling capping machine
Model No:AXGZ-SX-1
Features:

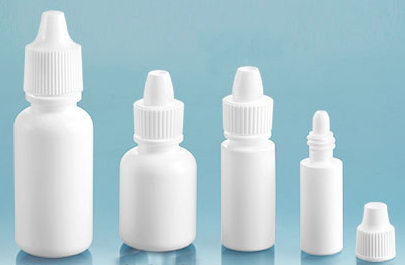

1. Small bottle filler and capper is suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on. 2. Small bottle filler and capper filling volume is 5-60ml; Filling speed 1000-3000 per hour. 3. Small bottle filler and capper use sus316 and sus304 stainless steel that accord with the CE standard and GMP. There's no foam and leak when fill the liquid. 4. Our machine can be customized. 5. Bottle clip fixtures, to avoid dislocation filling.

Product specifications

Main parameters of the machine

Data sheets

Details

Name and model

AXGZ-SX-1

AXGZ-SX-1DG

AXGZ-SX-2

Max filling speed (pcs/hour)

1000-1500

1000-3000

Power (KW)

1.2

1.5

Applicable bottle diameter size

Φ20 ≤D≤Φ50mm

Applicable bottle height size

30≤H≤100 mm

Filling accuracy

±1ml

Bottle material

Glass bottle, plastic bottle

Filling material

Eye drop, eliquid, cbg oil, cbd oil

Voltage

AC220V, single phase, 50/60HZ

Working pressure

0.6MP

Air consumption

700L one hour (speed 2000 bottles/hour)

Net/gross weight

400/600 Kgs

Machine size(L*W*H)

2000*1600*1900mm
