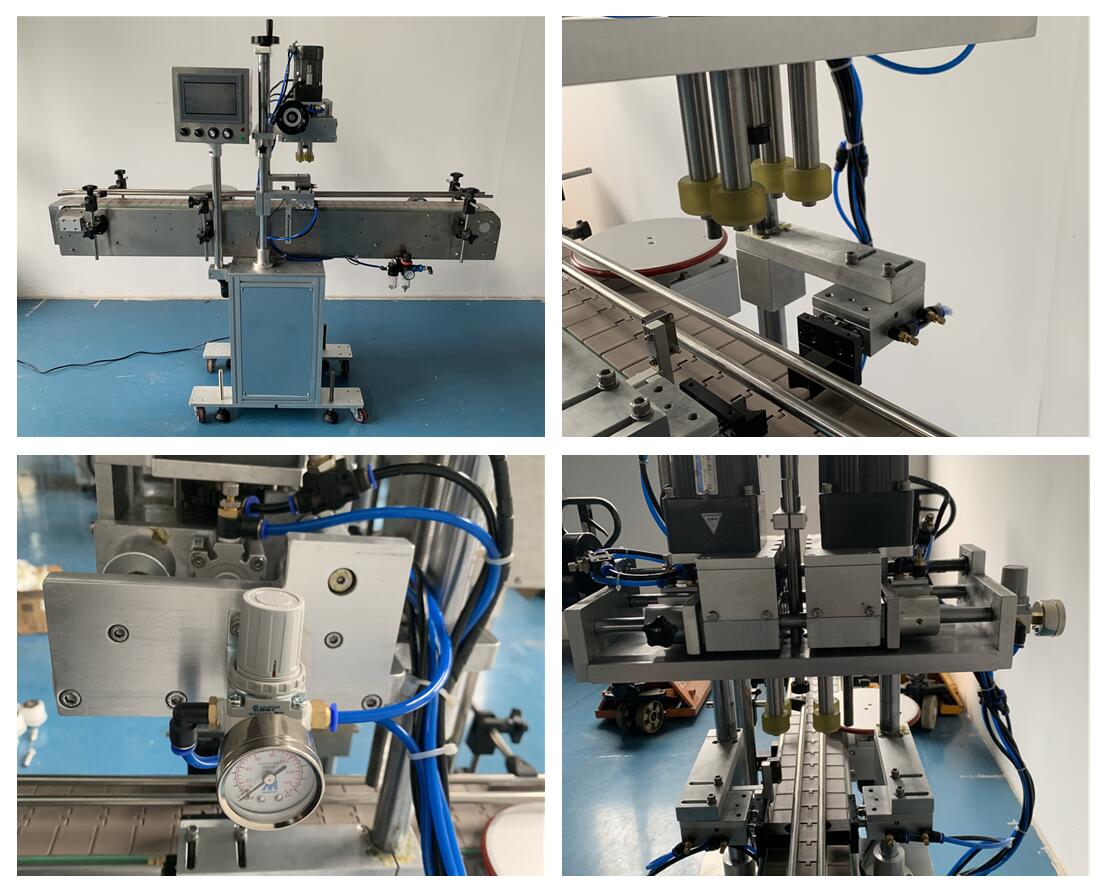

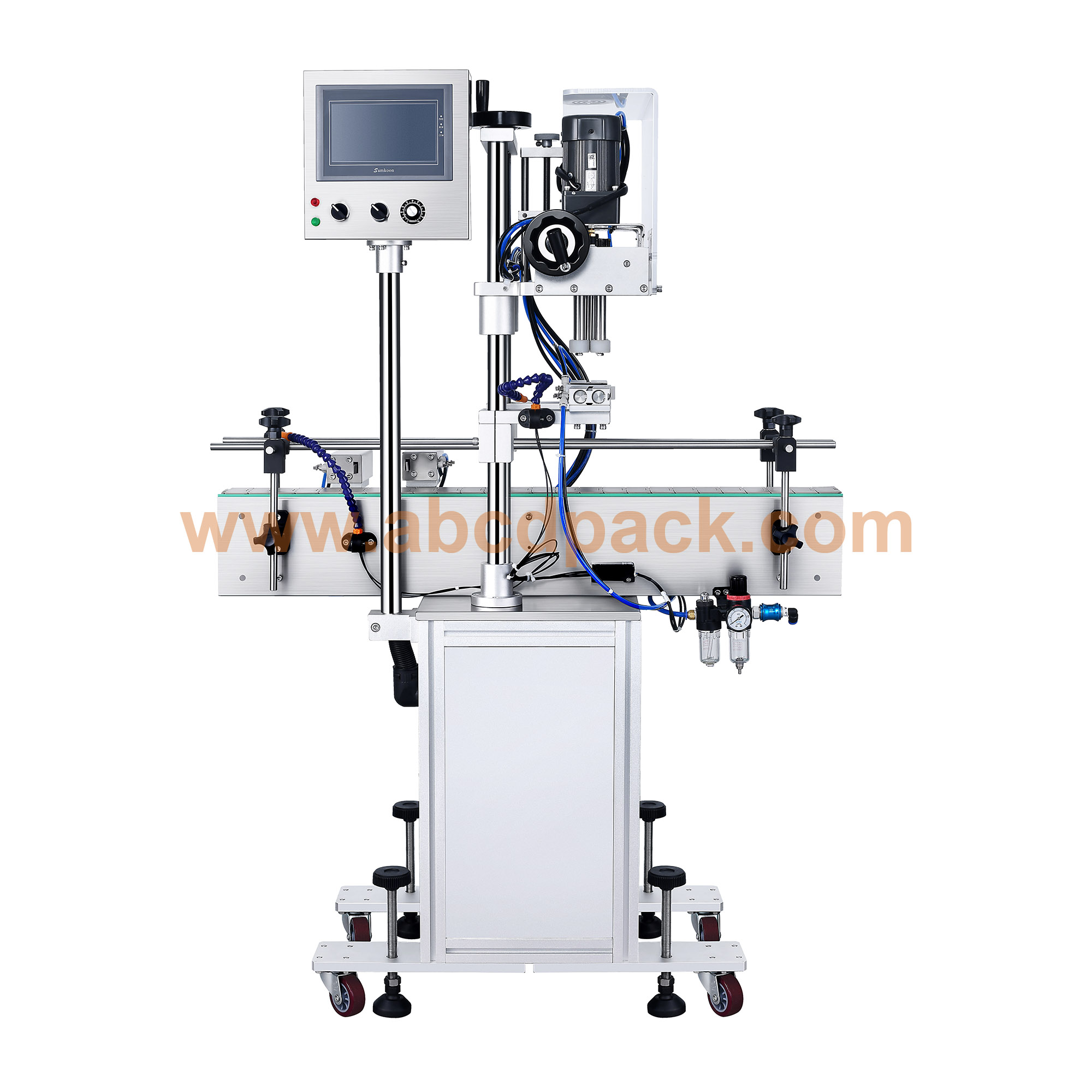

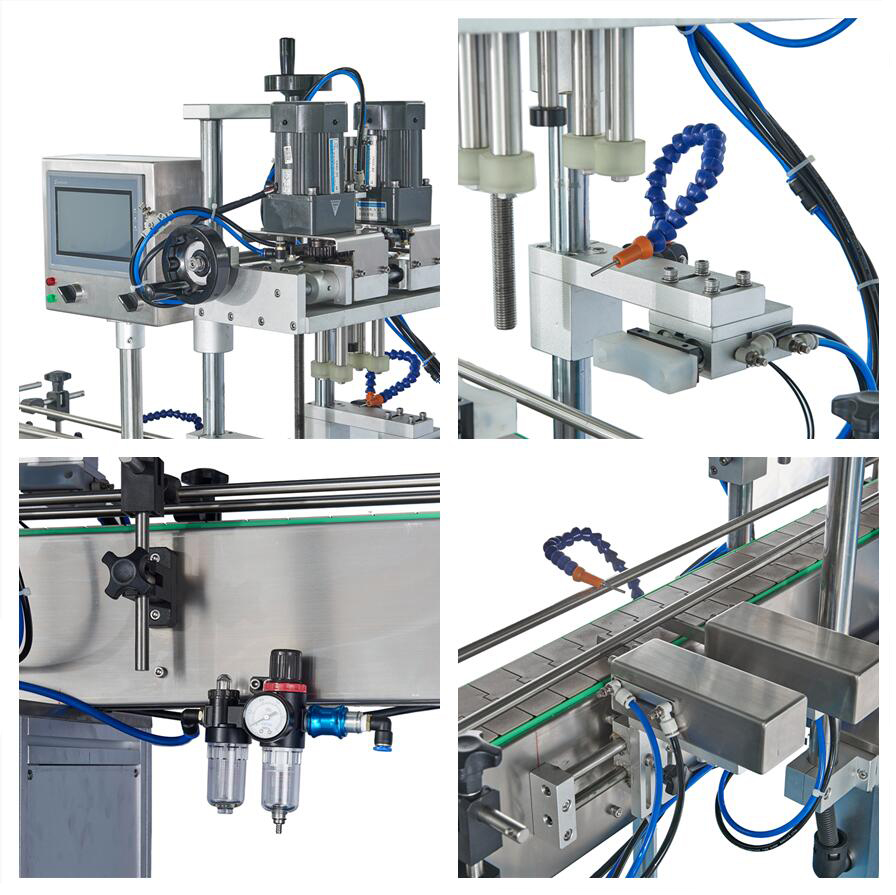

- Product name：Auto capping machine
- Model No：XGS-100P
- Features：
Product Description 1. This machine is suitable for containers and covers of various geometric shapes. 2. Touch screen control capping time. 3. Do not damage the cap.
Product specifications
|
Data sheets |
Details |
|
Name and model |
XGS-100P Automatic capping machine |
|
Closing cap motor |
Gear motor |
|
Cap closing speed |
0~30 caps/minute |
|
Applicable cap size |
Φ20mm≤D≤Φ80mm |
|
Applicable bottle |
Φ20mm≤D≤Φ100mm |
|
Applicable bottle height size |
40mm≤H≤300mm |
|
Power |
500W |
|
Voltage |
AC220V, single phase, 50/60HZ |
|
Working pressure |
0.6MP |
|
Air consumption |
500L one hour |
|
Machine size(L*W*H) |
1200*700*1700mm |
|
Machine direction |
From left to right |
|
Operation process |
Products on conveyor —>put cap manual —>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish |
