Product name:Thread turntable automatic cover lock machine
Model No:XGL-60
Features:
Product Description This machine suit for ROPP cap thread capping.

Product specifications

Main parameters of the machine

Data sheets

Details

Name and model

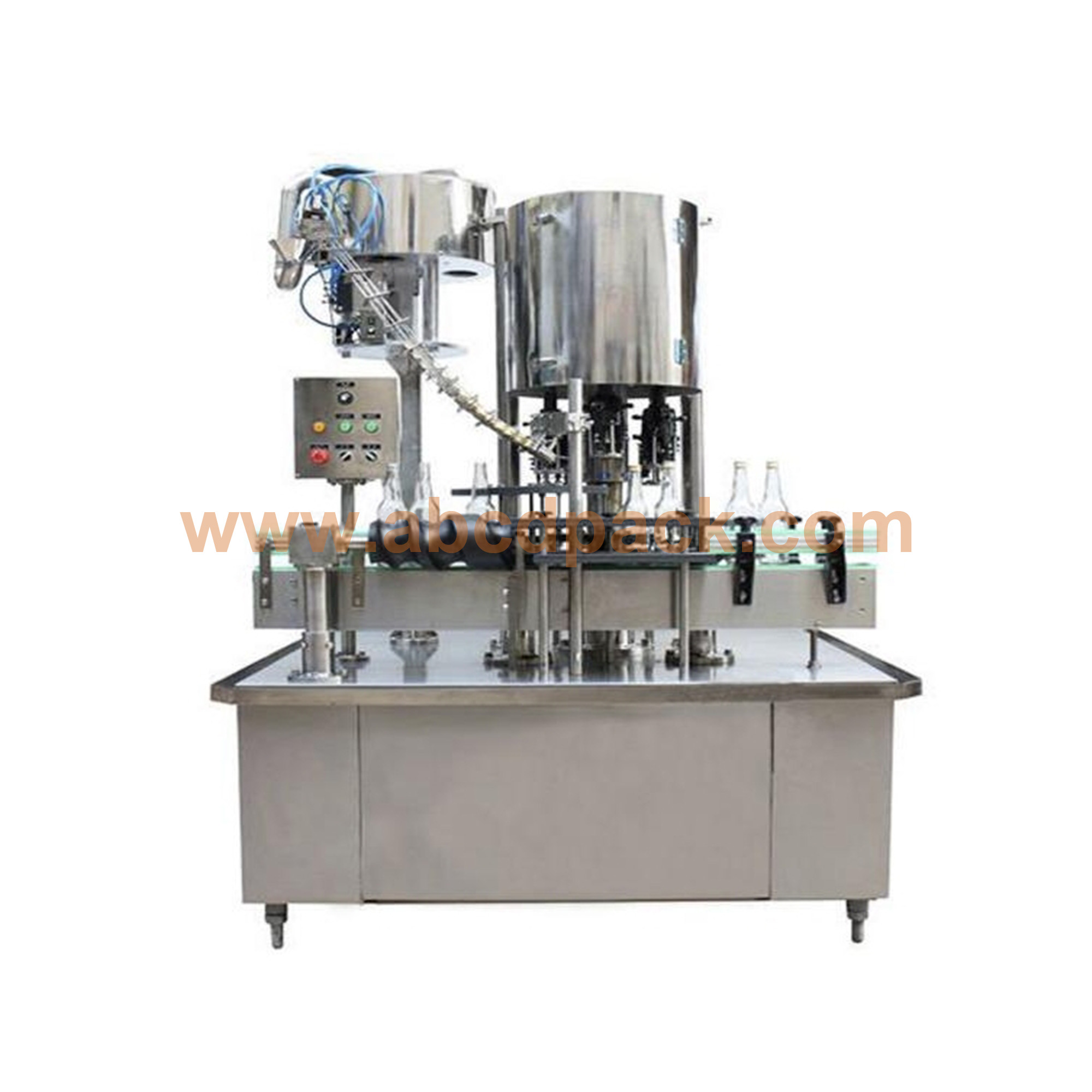

XGL-60-1   ROPP cap capping machine

XGL-60-4   ROPP cap capping machine

Closing cap motor

Gear motor

Gear motor

Cap closing speed

1000~1500 bottle one hour (according the capping head quantity)

1000~4000 bottle one hour (according the capping head quantity)

Cap diameter

Φ22DΦ32mm ROPP cap

Φ22DΦ32mm ROPP cap

Bottle diameter size

Φ38DΦ100mm

Φ38DΦ100mm

Bottle height size

50H300mm

50H300mm

Power

2000W

2000W

Voltage

AC220V, 3 phase, 50/60HZ

AC220V, 3 phase, 50/60HZ

Working pressure

Not need compressed air

Not need compressed air

Machine size(L*W*H)

1500*1100*2200

1500*1100*2200

Net weight

400kgs

500kgs

Run direction

From left to right

From left to right
