- Product name：Chain type cap sorting machine
- Model No：AXLG-1-DG
- Features：

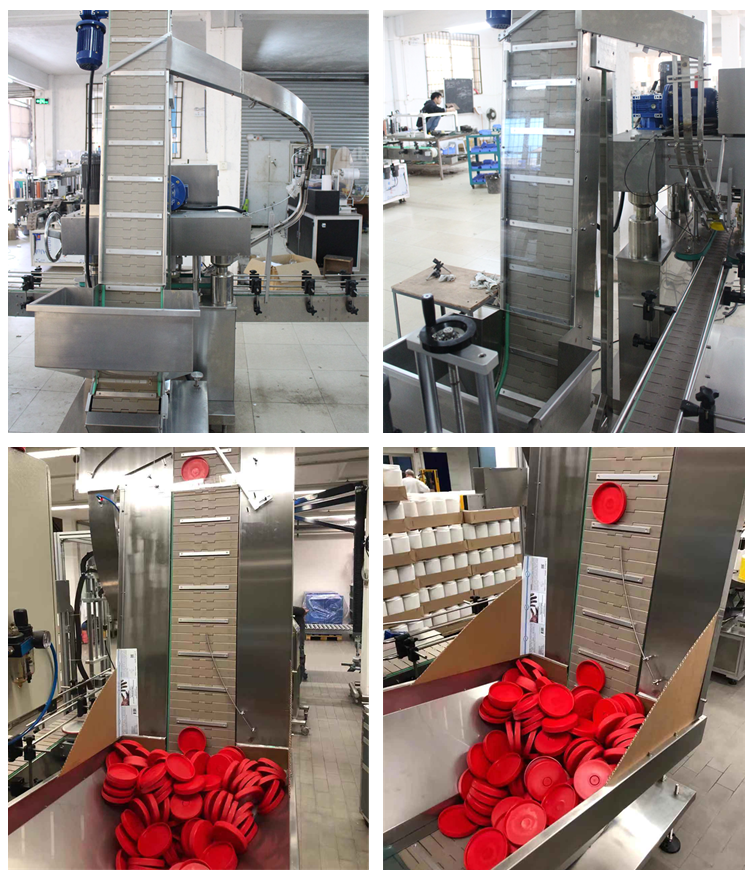

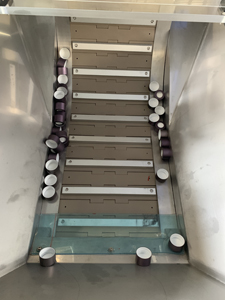

Product Description 1. Sort cap with bunker and elevator and chute, tow away the cap by the bottle neck. 2. Basic construction: SUS304 & anodized aluminum alloy, inside support machine frame is painted steel
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AXLG-1-DG Chain elevator cap sorting machine |
|
Motor |
Gear motor |
|

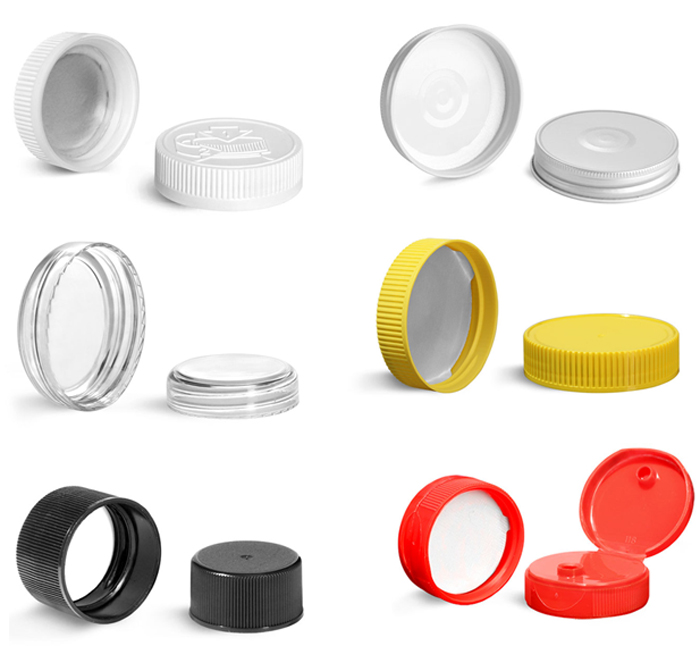

Applicable cap diameter |
Φ80≤D≤Φ140mm |
|
Applicable cap height size |
20≤D≤40mm |
|
Power |
400W |
|
Voltage |
AC220V, single phase, 50/60HZ |
|
Working pressure |
Need compressed air |
|
Machine size(L*W*H) |
800*800*1800mm |
|
Net weight |
100kgs |
