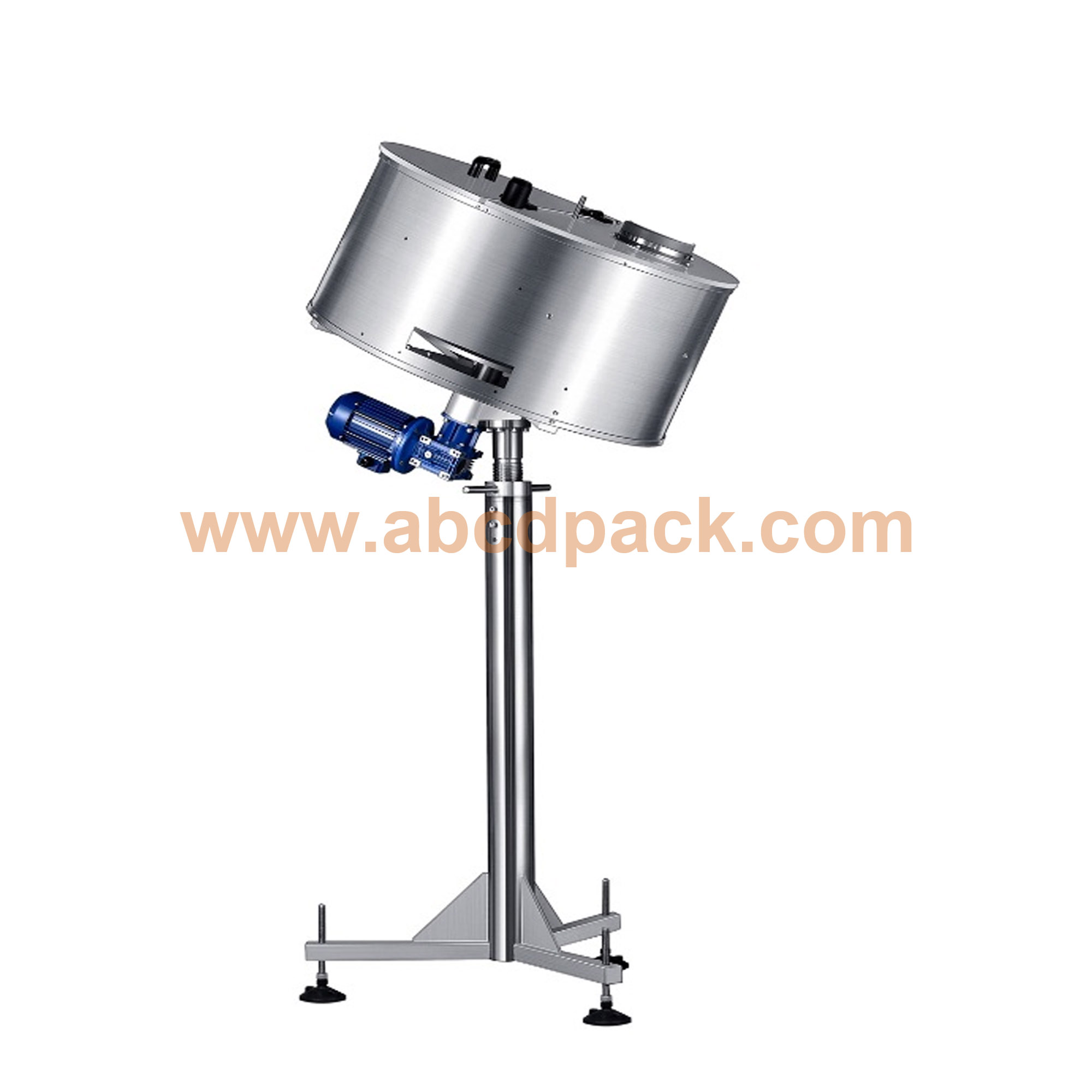

- Product name：cap sorting and feeding device
- Model No：AXLG-5
- Features：

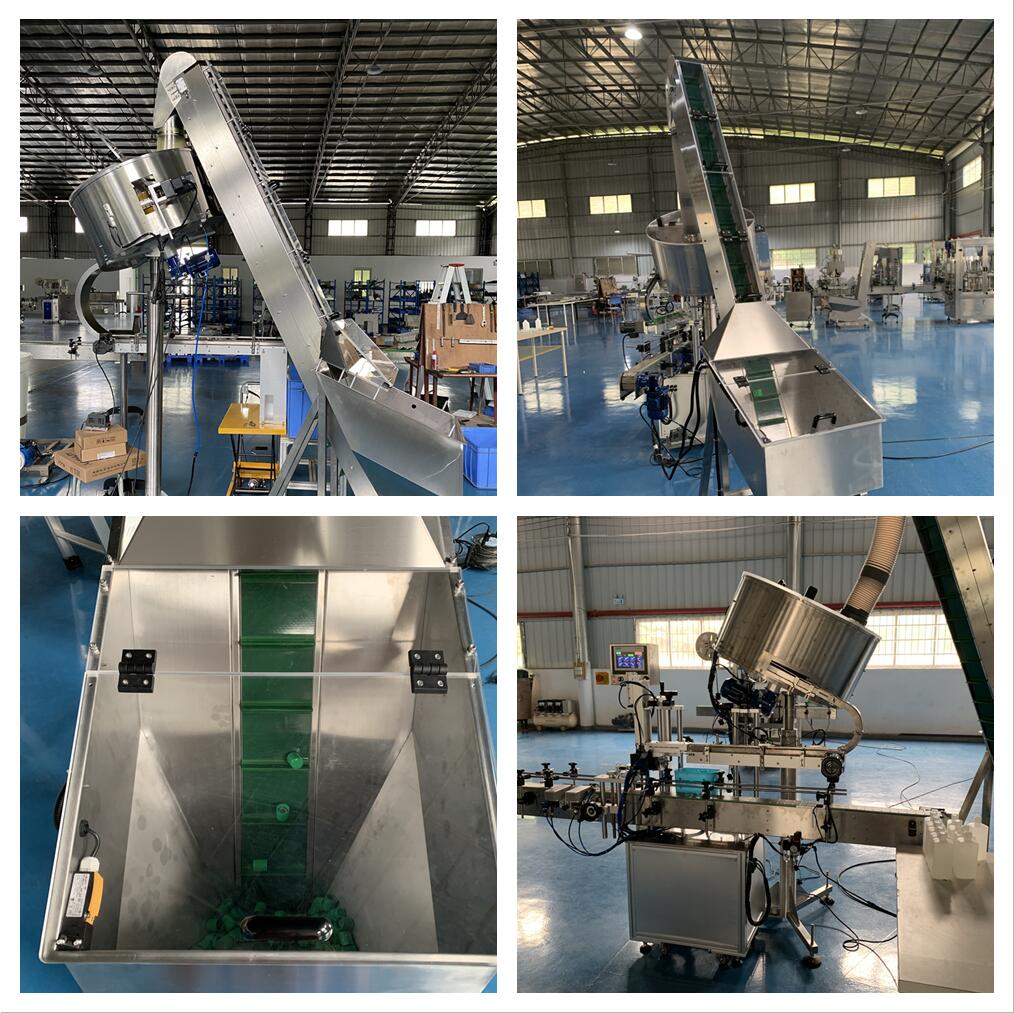

Product Description Sorting cap with turning bowl. Lifting cap with bunker and elevator system. Feed cap with top belt to the position.
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AXLG-5 Cap feeding and sorting device |
|
Motor |
Gear motor |
|
Cap feeding speed |
20~60 cap one minute |
|
Applicable cap diameter |
Φ20≤D≤Φ80 mm |
|
Applicable cap height |
20≤D≤40 mm |
|
Power |
800W |
|
Voltage |
AC220V, single phase, 50/60HZ |
|
Working pressure |
Need compressed air |
|
Machine size(L*W*H) |
2500*1200*1900mm |
|
Net weight |
300kgs |
