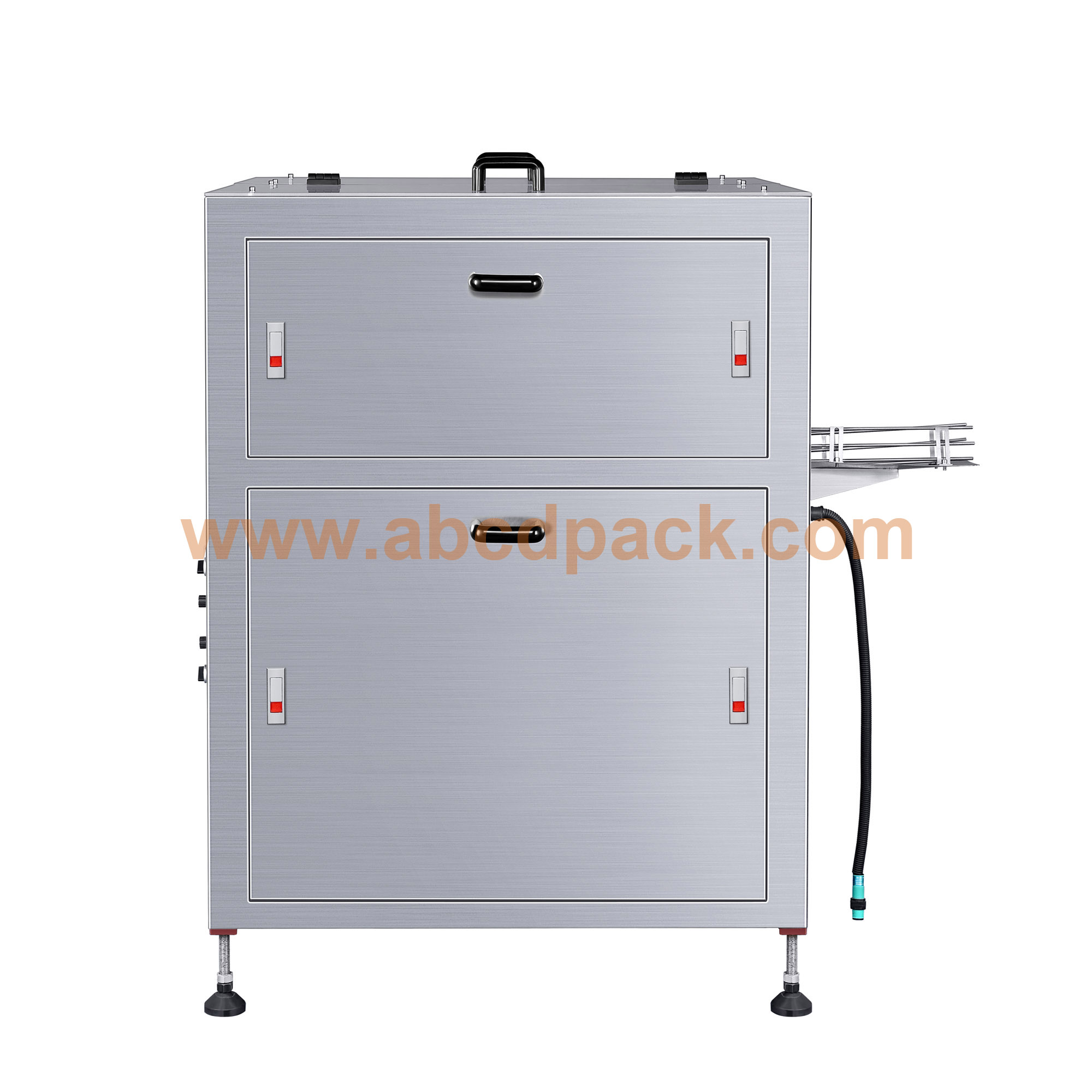

Product name:Vial bottle unscrambler
Model No:ALBG-50
Features:
Product Description 1. It is suitable for automatic transmission of round bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, automatic feeding, improving efficiency; can be applied to the intermediate connection of the assembly line as a buffer platform. Reduce the length of the conveyor belt. 2. The applicable bottle range can be adjusted freely. The bottle conveying speed is 30~100 bottles/min, and the speed can be adjusted steplessly to facilitate production arrangement.

Product specifications

Main parameters of the machine

Data sheets

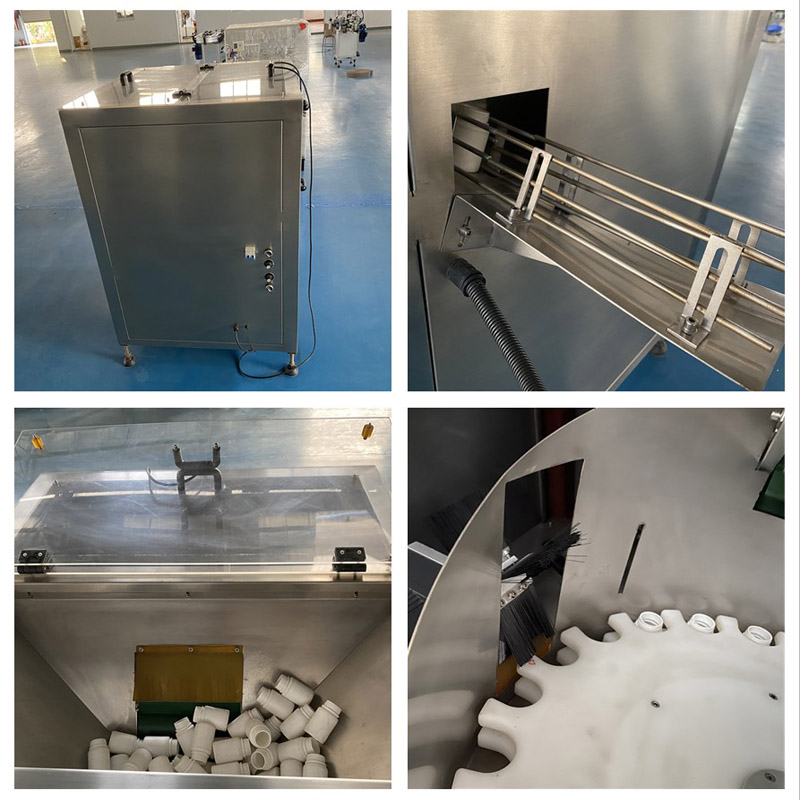

Details

Name and model

ALBG-50  Vial bottle unscrambler

Sorting speed

30~100pcs/minute

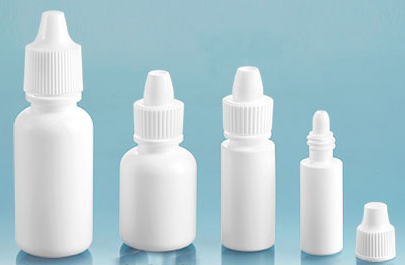

Applicable bottle

Φ20mmDΦ100mm

Applicable bottle height size

20mmH150mm

Power

200W

Voltage

AC220V, single phase, 50/60HZ

Working pressure

need compressed air: 0.5~0.6Mpa

Oversize (L*W*H)

1250*850*1250mm

Net weight

100kgs
