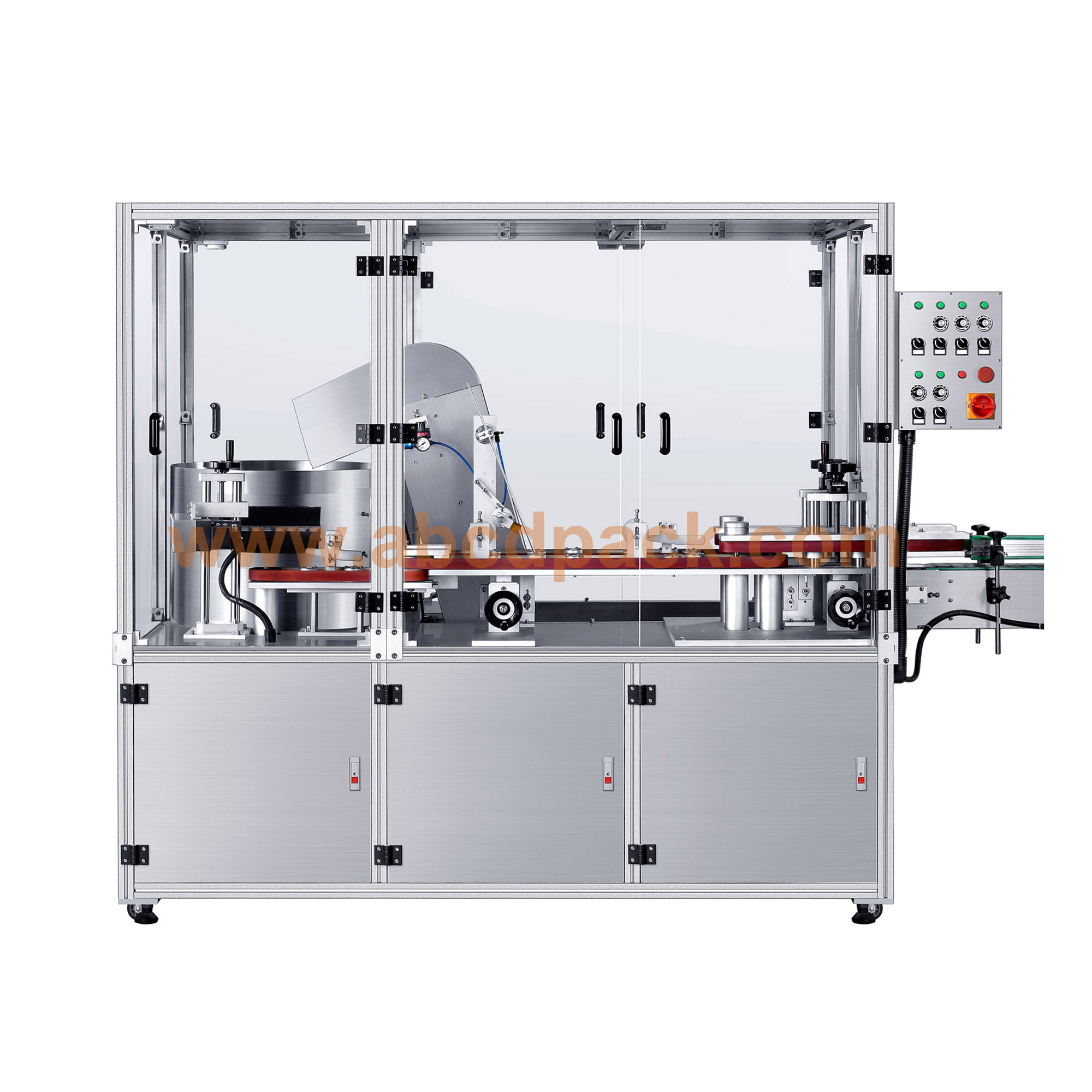

- Product name：Auto bottle unscrambling machine
- Model No：ALBG-200
- Features：
1. It is suitable for automatic transmission of round and square bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, automatic feeding, improving efficiency; can be applied to the intermediate connection of the assembly line as a buffer platform. Reduce the length of the conveyor belt. 2. The applicable bottle range can be adjusted. The bottle conveying speed is 30~100 bottles/min, and the speed can be adjusted to facilitate production arrangement.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
ALBG-200 auto bottle unscrambling machine
Sorting speed
30~100pcs/minute
Applicable bottle
Φ20mm≤D≤Φ120mm
Applicable bottle height size
50mm≤H≤200mm
Power
1200W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
need compressed air: 0.5~0.6Mpa
Oversize (L*W*H)
2200*1100*1800mm
Net weight
440kgs
