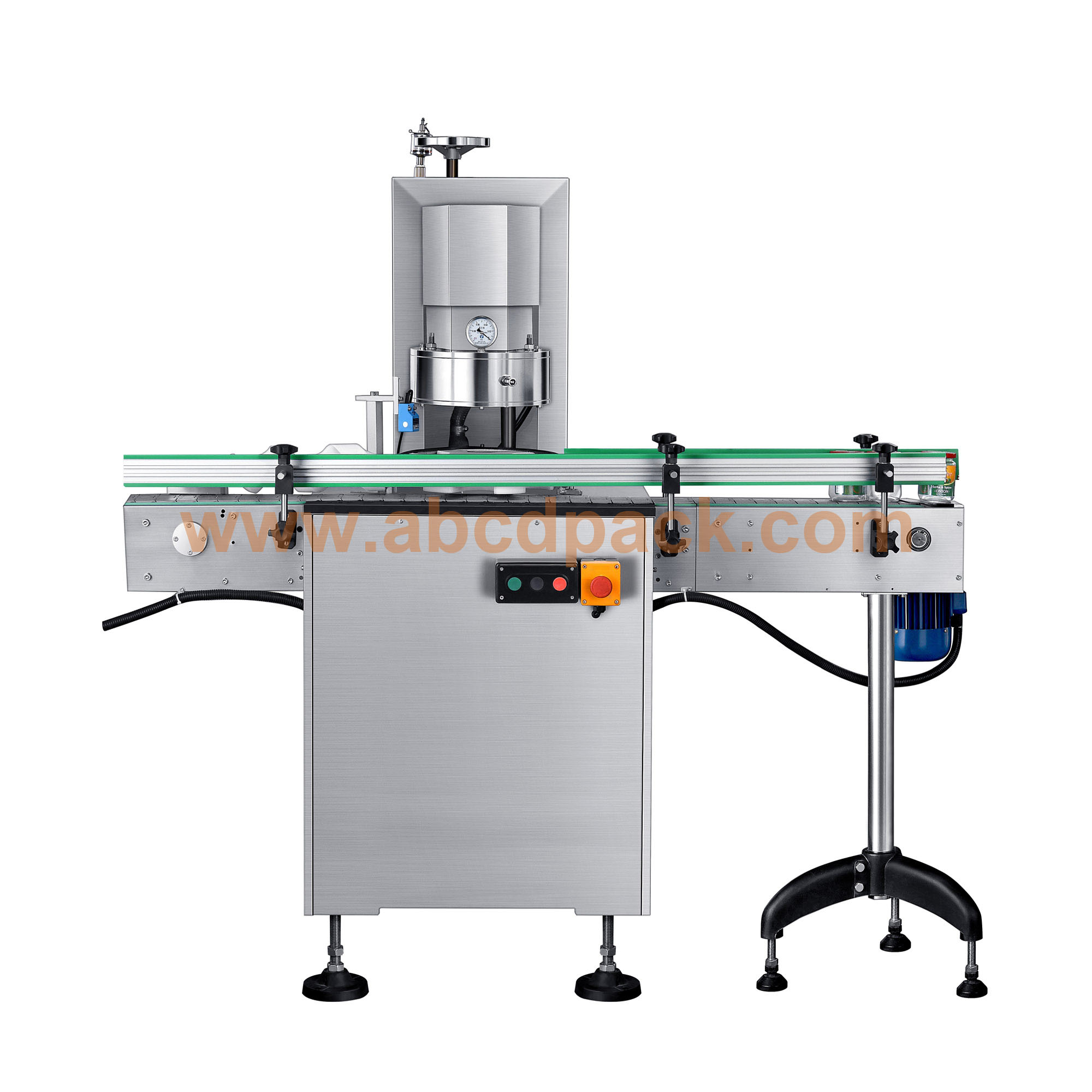

Vacuum capping machine （not include capping insert system）

Product name：Vacuum capping machine （not include capping insert system）

Model No：XGK-ZP-1J

Features：

1. The vacuum capping machine is suitable for the sealing of the glass bottle of various shapes and specifications, the bottle and the cover are automatically delivered to the vacuum chamber position, then the vacuum chamber is formed, the vacuum is vacuumed, and the cover is tightened.
2. Applicable specifications: three screw cap, four screw cap.

Product specifications

Main parameters of the machine

Data sheets	Details
Name and model	XGK-ZP-1J Vacuum capping machine （not include capping insert system）
Cap closing speed	800~1800 bottle one hour
Cap diameter	Φ30≤D≤Φ90mm
Bottle diameter size	Φ38≤D≤Φ100mm
Bottle height size	50≤H≤150mm
Power	1000W
Voltage	AC220V, single phase, 50/60HZ
Working pressure	0.6Mpa
Machine size(LWH)	10008001500mm
Net weight	300kgs
Basic construction	SUS304 stainless steel and anodized aluminum alloy, inside support machine frame is painted steel
