- Product name：Automatic capping machine
- Model No：XGS-100PD
- Features：
Product Description 1. This machine is suitable for containers and covers of various geometric shapes. 2. Touch screen control capping time. 3. Do not damage the cap.
Product specifications
Main parameters of the machine
Data sheets

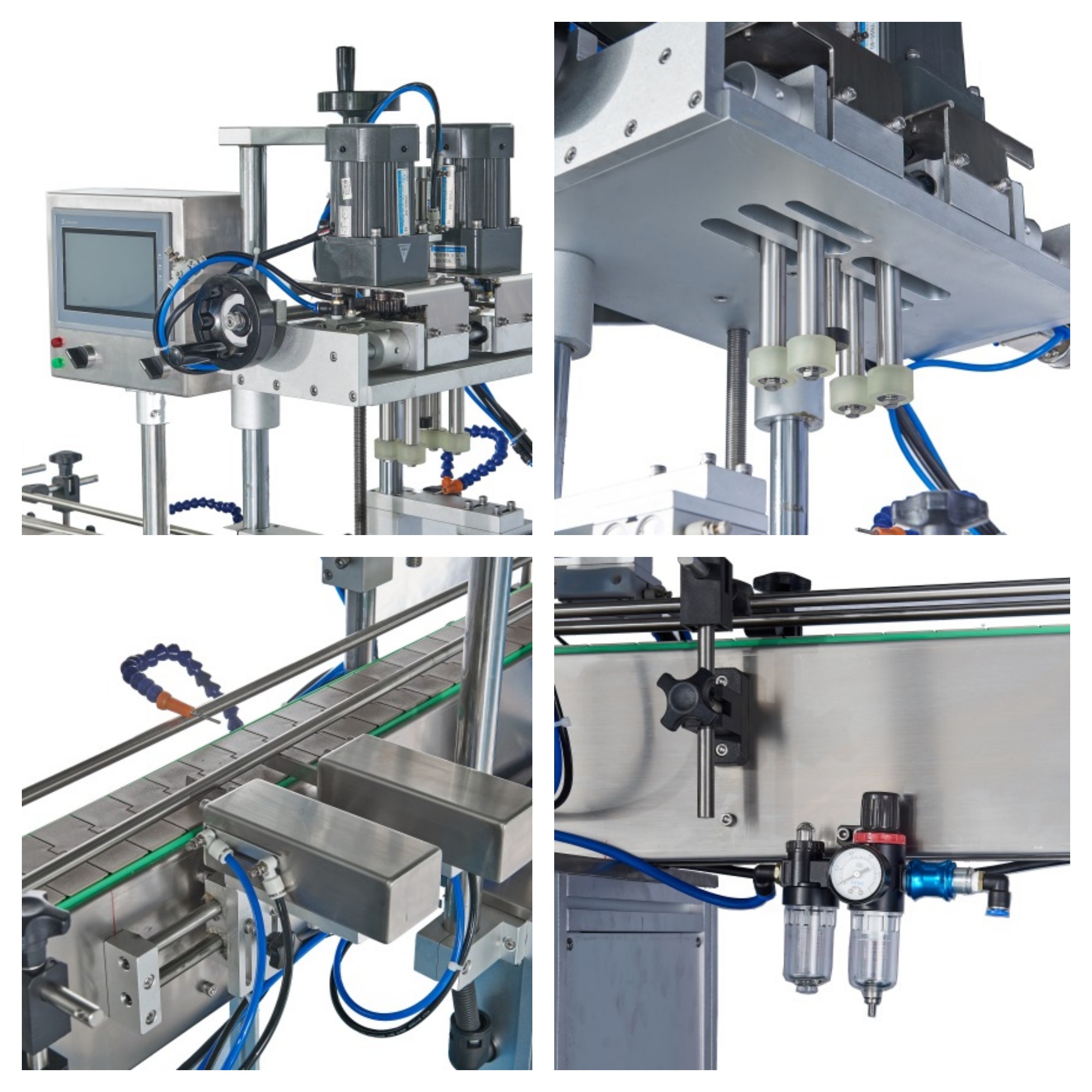

Details
Name and model

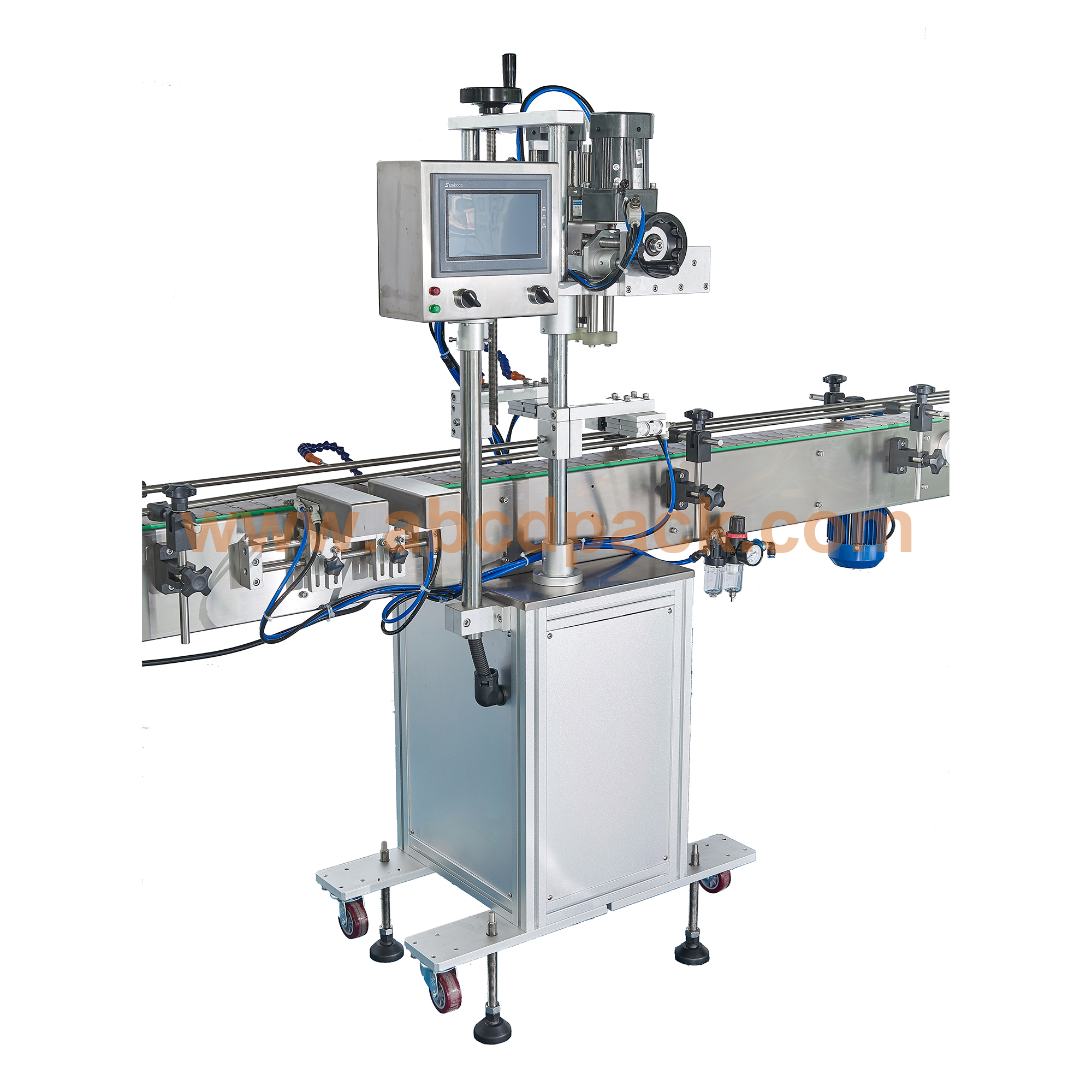

XGS-100PD Automatic capping machine
Closing cap motor
Gear motor
Cap closing speed
0~30 caps/minute (according the capping head quantity)
Applicable cap size
Φ20mm≤D≤Φ80mm
Applicable bottle
Φ20mm≤D≤Φ100mm
Applicable bottle height size
40mm≤H≤300mm
Power
500W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
0.6MP
Air consumption
500L one hour
Machine size(L*W*H)
1200*700*1700mm
Machine direction
From left to right
Operation process
Products on conveyor —>put cap manual —>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish
