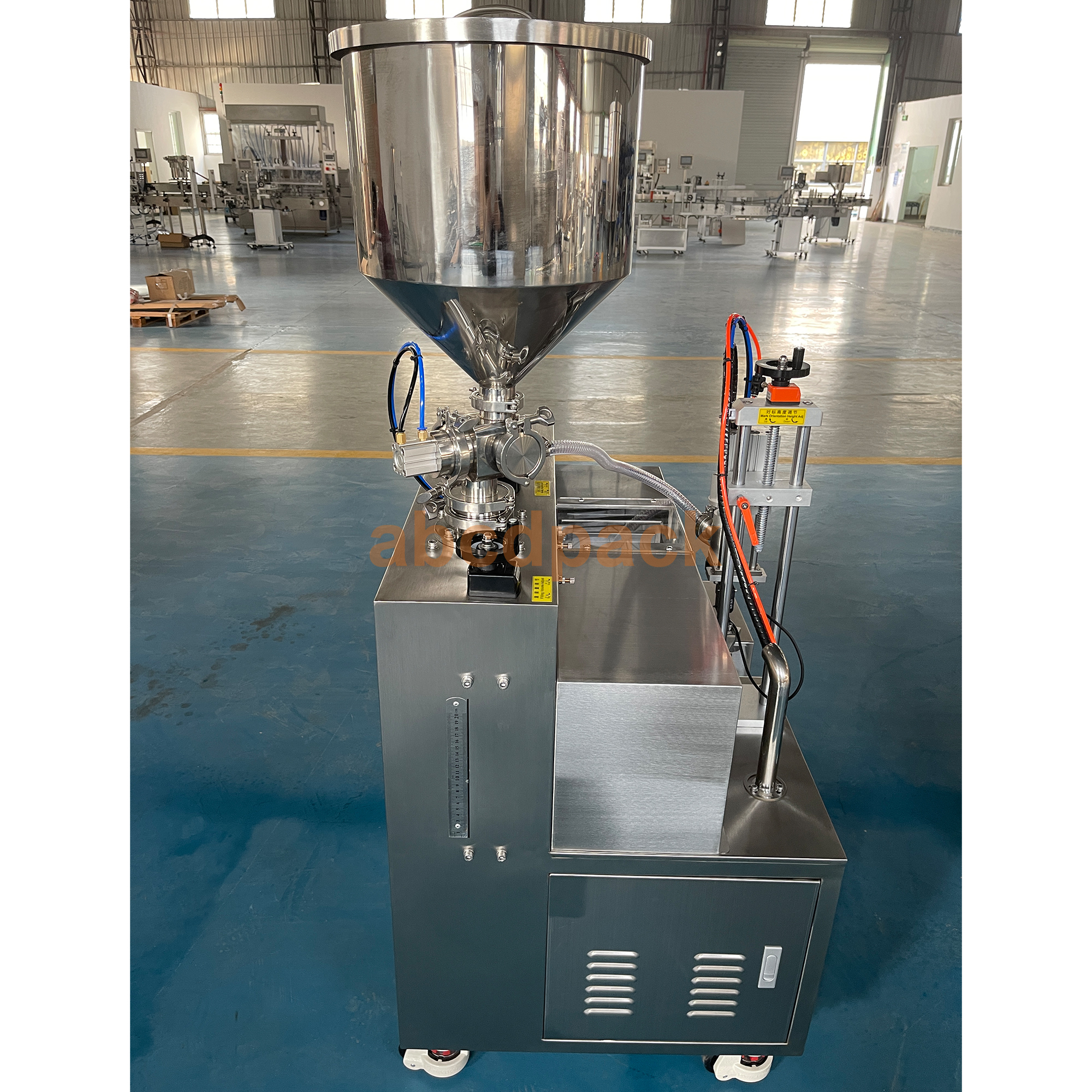

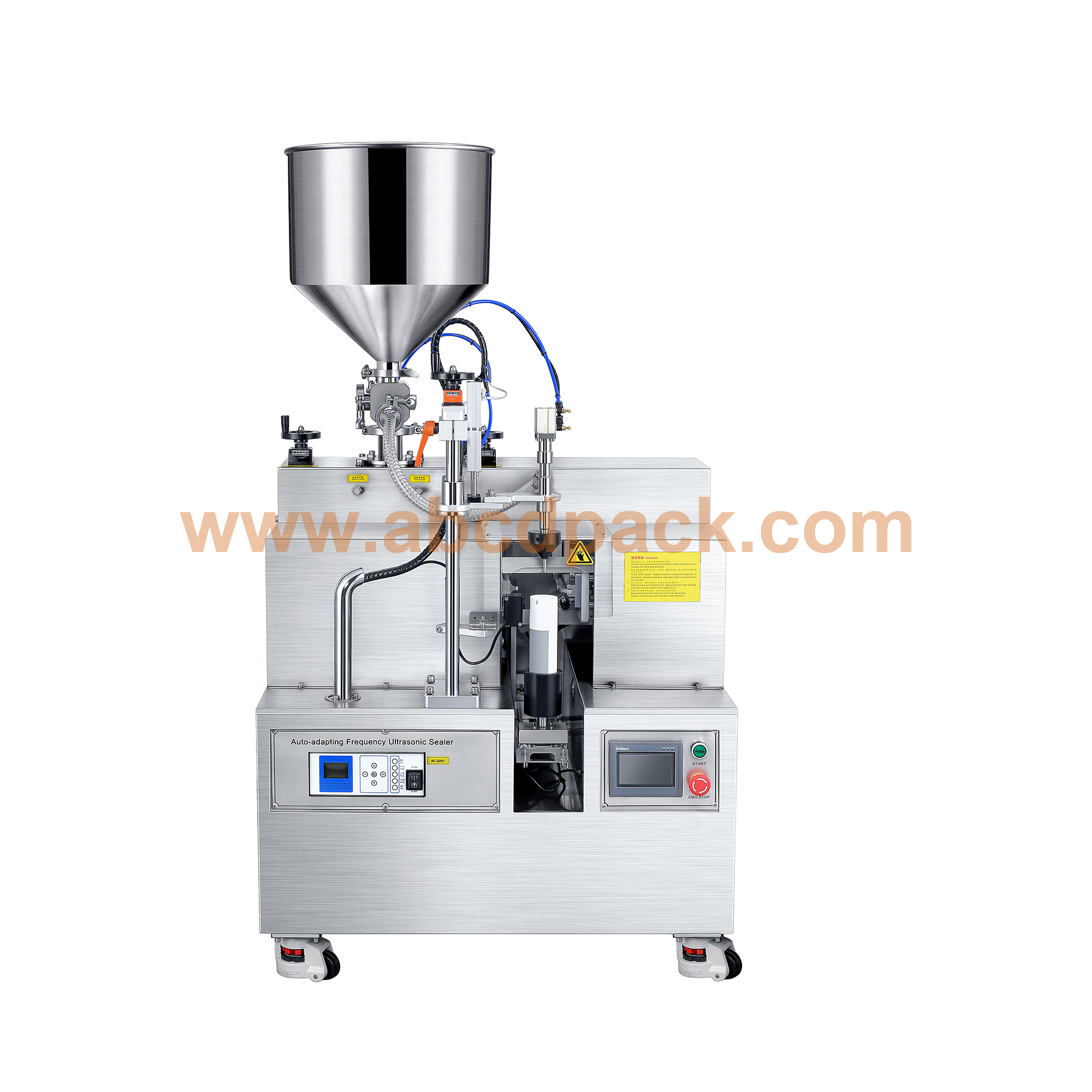

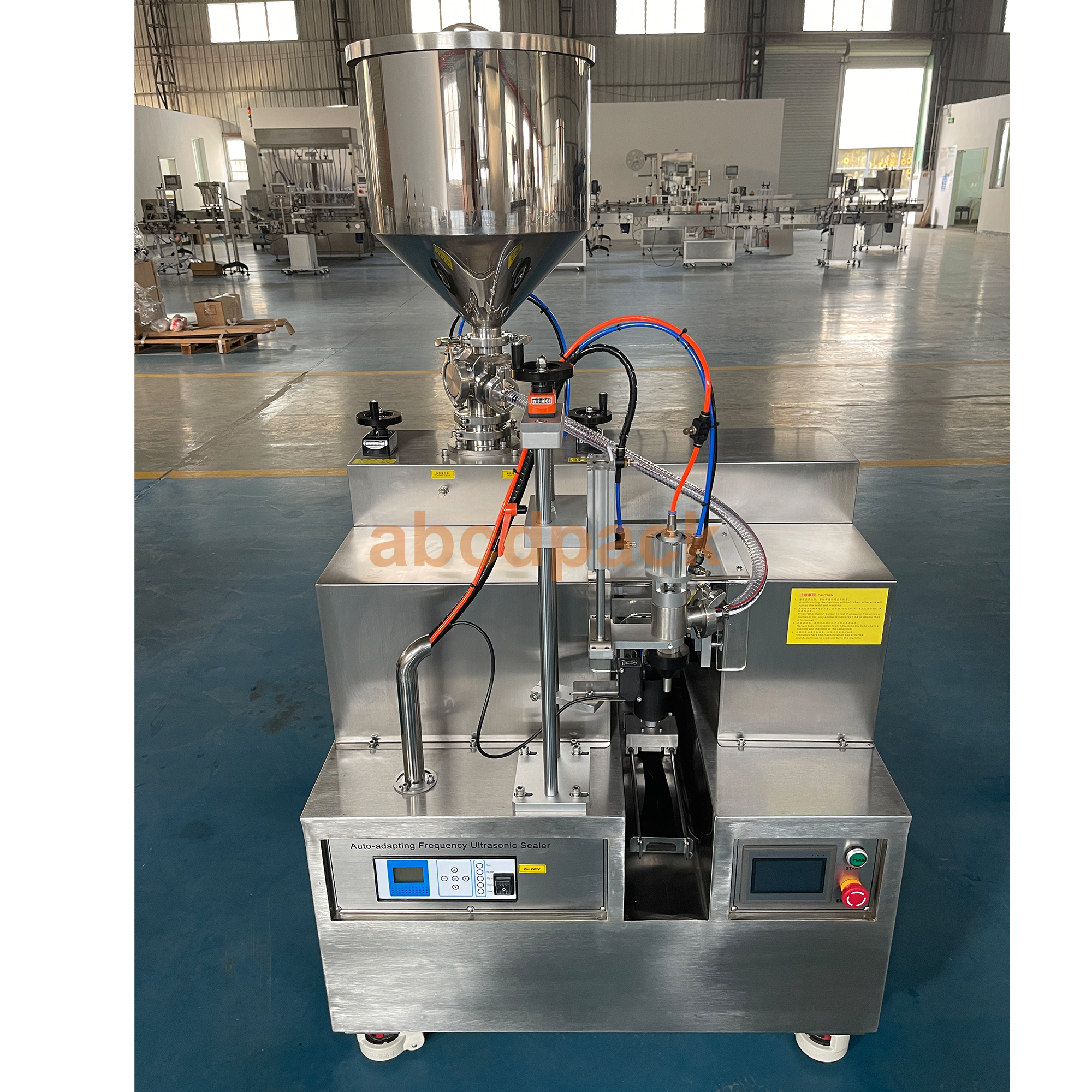

- Product name：Single station filling and ultrasonic sealing machine
- Model No：AD-20GZ
- Features：
Product Description 1. Tube feed by hand. 2. Suit for laminate tube, plastic composite tube and aluminum plastic composite tube sealing. 3. This machine uses the ultrasonic principle to weld and seal the tail of the tube. When welding, it does not add any adhesive, filler or solvent, and does not consume a lot of heat source. 4. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency. 5. This machine is widely used in toothpaste, cosmetics, pharmaceuticals, food, industrial supplies and other types of tube sealing.
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AD-20GZ single station filling and ultrasonic sealing machine |
|
Max filling speed |
500~900pcs/hour |
|
Applicable tube diameter size |
Φ10≤D≤Φ50mm |
|
Applicable tube height size |
50≤H≤200mm |
|
Filling accuracy |
±1ml |
|
Voltage |
AC220V,single phrase, 50/60HZ |
|
Power |
2KW |
|
Working pressure |
0.6MP |
|
Hopper volume |
40L |
|
Net Weight |
150kgs |
|
Machine size |
860*680*1550mm |
|
Ultrasonic frequency |
20khz |
|
Filling capacity |
6-60, or 10-120, or 25-250ml （one machine adopt one size） |
