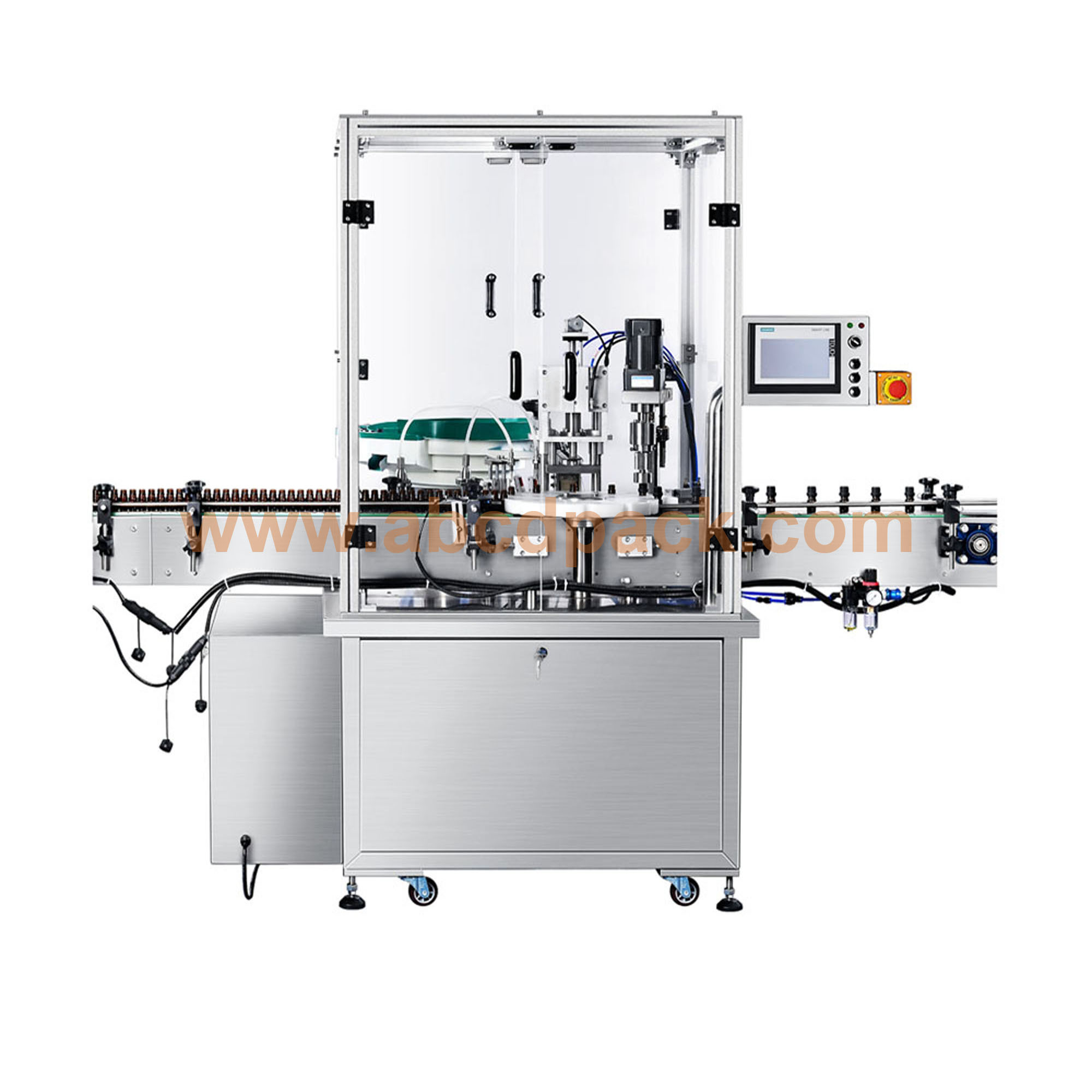

- Product name：Small capacity filling machine
- Model No：AXGZ-SX-1B-40-PT
- Features：
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AXGZ-SX-1B-40-PT Small capacity filling machine |
|
Max filling speed |
1000-1800 pcs/hour |
|
Applicable bottle diameter size |
Φ20≤D≤Φ40mm |
|
Applicable bottle height size |
30≤H≤100mm |
|
Filling accuracy |
±1ml |
|
Bottle material |
Glass bottle, plastic bottle |
|
Filling material |
Eye drop, body lotion, skin cream, essential balm |
|
Voltage |
AC220V, single phase, 50/60HZ |
|
Power |
1.2KW |
|
Working pressure |
0.6MP |
|
Air consumption |
700L one hour (speed 2000 bottles/hour) |
|
Net/gross weight |
400/600Kgs |
|
Machine size(L*W*H) |
2000*1600*1900mm |
1. Small bottle filler and capper is suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on.
2. Small bottle filler and capper filling volume is 5-60ml; Filling speed 1000-3000 per hour.
3. Small bottle filler and capper use sus316 and sus304 stainless steel that accord with the CE standard and GMP. There's no foam and leak when fill the liquid.
4. Our machine can be customized.
5. Bottle clip fixtures, to avoid dislocation filling.
