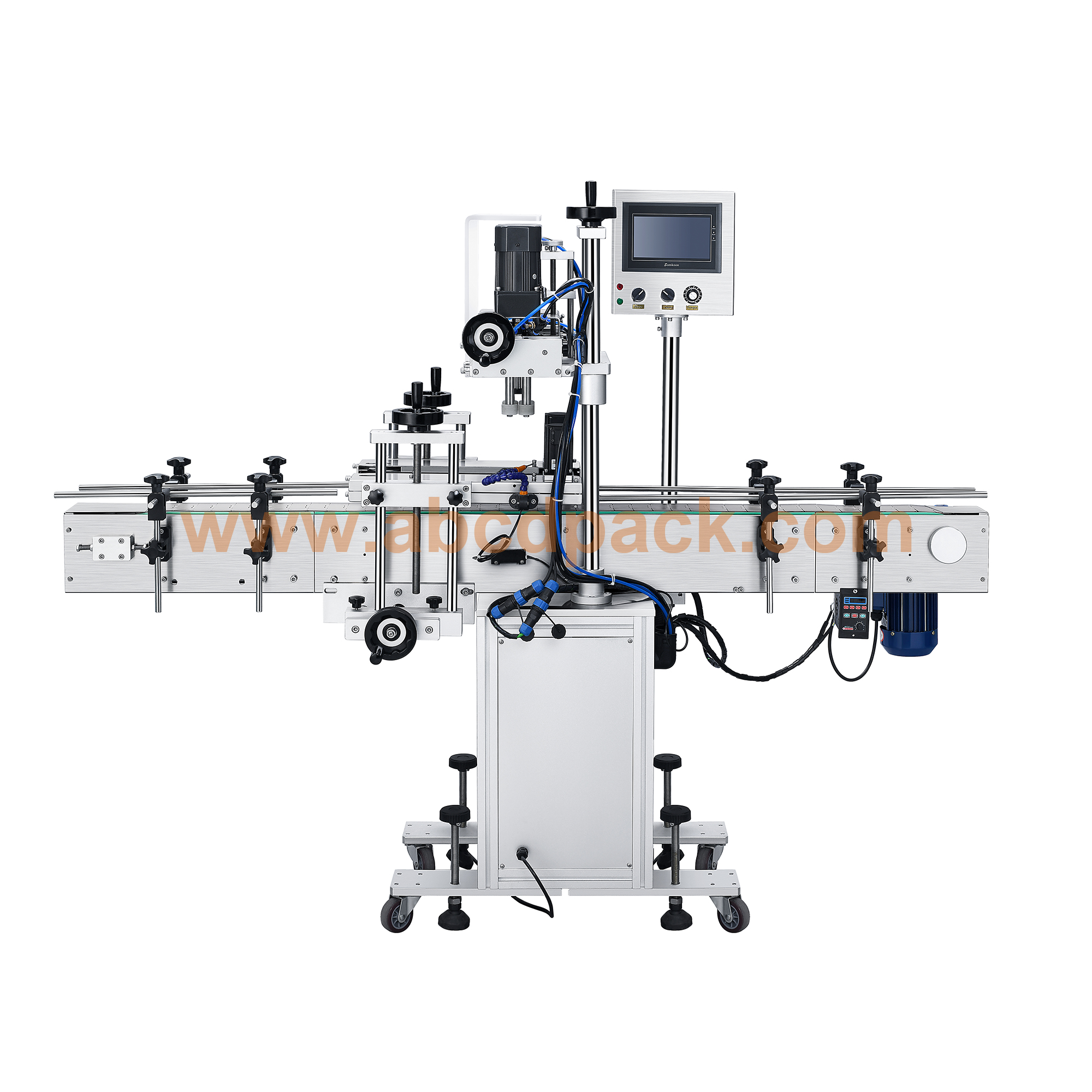

- Product name：Automatic capping machine with side belt
- Model No：XGS-100PJ
- Features：
Product Description 1. This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry, it can be applied to a variety of bottle types, high production efficiency. 2. Touch screen control capping time, and do not damage the cap.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
XGS-100PJ Automatic capping machine with side belt
Closing cap motor
Gear motor
Cap closing speed
0~30 caps/minute
Applicable cap size
Φ20mm≤D≤Φ80mm
Applicable bottle
Φ20mm≤D≤Φ100mm
Applicable bottle height size
40mm≤H≤300mm
Power
500W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
0.6MP
Air consumption
500L one hour
Machine size(L*W*H)
1200*700*1700mm
Machine direction
From left to right
Operation process
Products on conveyor —>put cap manual —>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish
