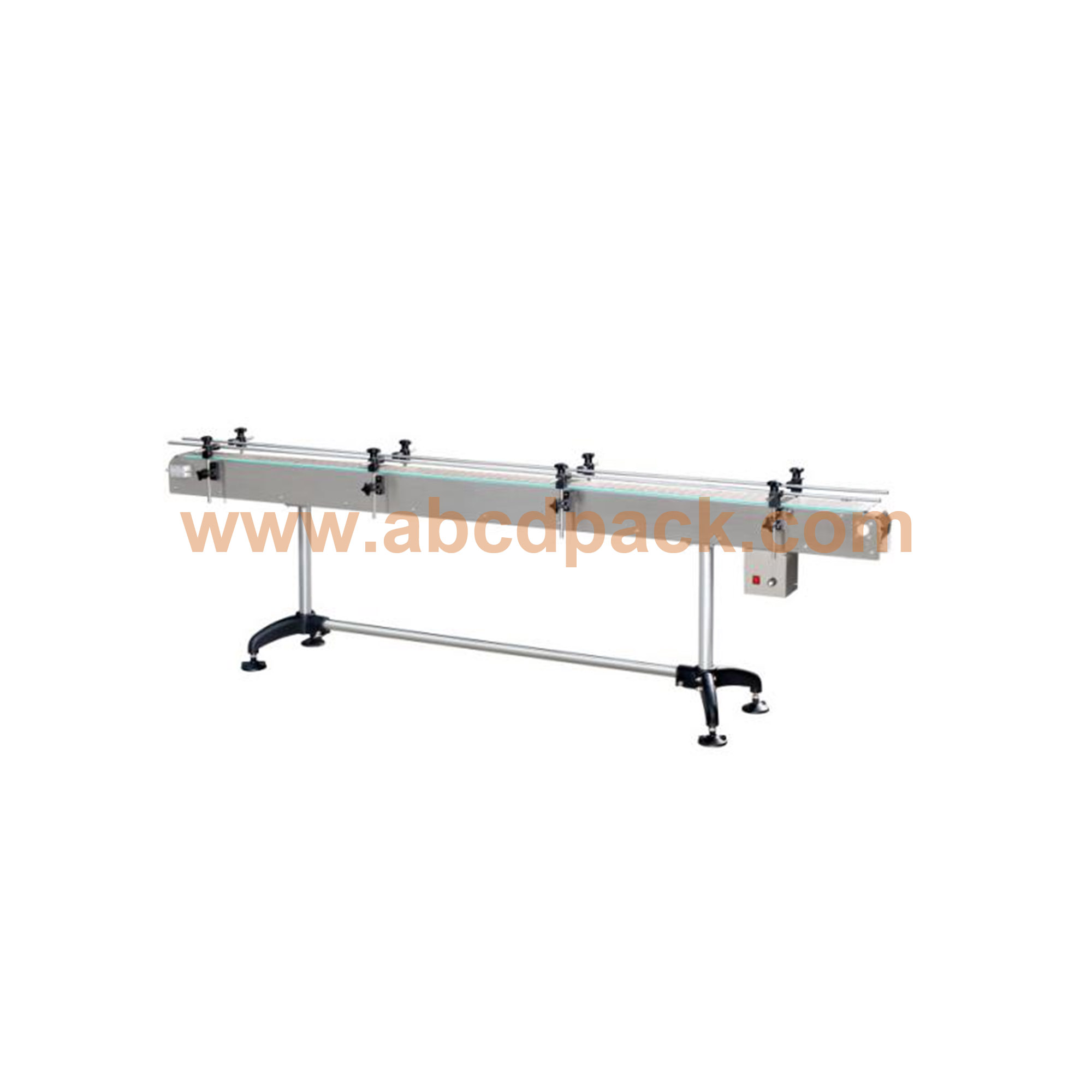

Product name:POM slat chain conveyor
Model No:AL-2-2000LB
Features:
Product Description Slat chain conveyor adopts standard slat chain as the carrying surface, motor speed reducer as the power, running on the special rail. The conveying surface is flat and smooth. The friction is low. Materials can be transported smoothly among conveying lines. Based on different technological processes, slat chain can be divided into straight running type and flexible running type. Material of slat chain includes plastic steel and stainless steel. It is suitable to convey plastic bottles, glass bottles and ring pull cans. It can also convey cartons, and cargoes in bags. We can make slat chain conveyor multi-row that makes conveying surface very wide and produces a difference in speed, then the material can be transported from multi-row to single-row without squeezing. Also, we can make material transported from single-row to multi-row so as to realize storage of material while being transported.

Product specifications

Main parameters of the conveyor

Data sheets

Details

Name and model

AL-2-2000LB  POM slat chain conveyor

Conveyor width

82 mm

Transportation speed

1~20m/min(adjustable)

Chain plate material

Hot plastic chain, POM

Power(W)

25W

Voltage

220V*50Hz*1P

Function:

Beverage products transportation

Maximum weight of goods

800 kg/m2

Conveyor system material

Stainless steel SUS304

Height(mm)

800-1000mm(customized)
