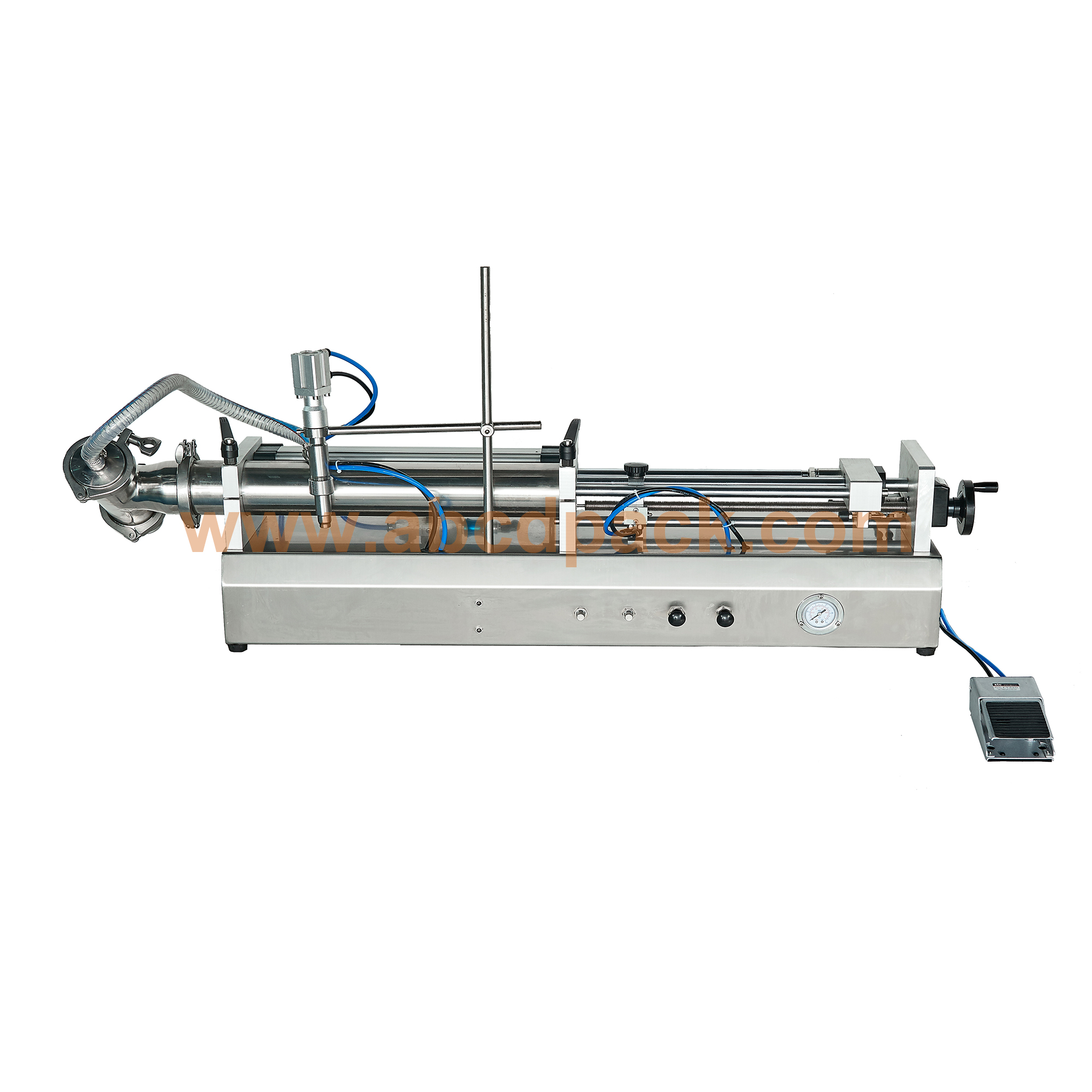

- Product name：Semi-automatic single head liquid filling machine
- Model No：ADY-1-500K/1000K/2500K/5000K
- Features：
Product Description 1. High filling accuracy 2. Adopting SUS304 or SUS316L stainless steel 3. Fully pneumatic control 4. Easy operation easy cleaning 5. Ideal for liquid and liquid filling with low viscosity
Product specifications
Main parameters of the machines
Data sheets
Details
Model detail
ADY-1-500K
ADY-1-1000K
ADY-1-2500K
ADY-1-5000K
Filling volume
50-500ml
100-1000ml
200-2500ml
500-5000ml
Filling Speed
（B/min）
0-40
0-40
0-40
0-20
Accuracy
1%
1%
1%
1%
Net weight
28kg
30kg
35kg
40kg
Gross weight
38kg
40kg
45kg
52kg
Volume weight
80kgs
80kgs
80kgs
80kgs
Oversize (mm) (L*W*H)
1200*500*500
1200*500*500
1200*500*500
1580*700*500
Required air
0.55Mpa~0.65Mpa
