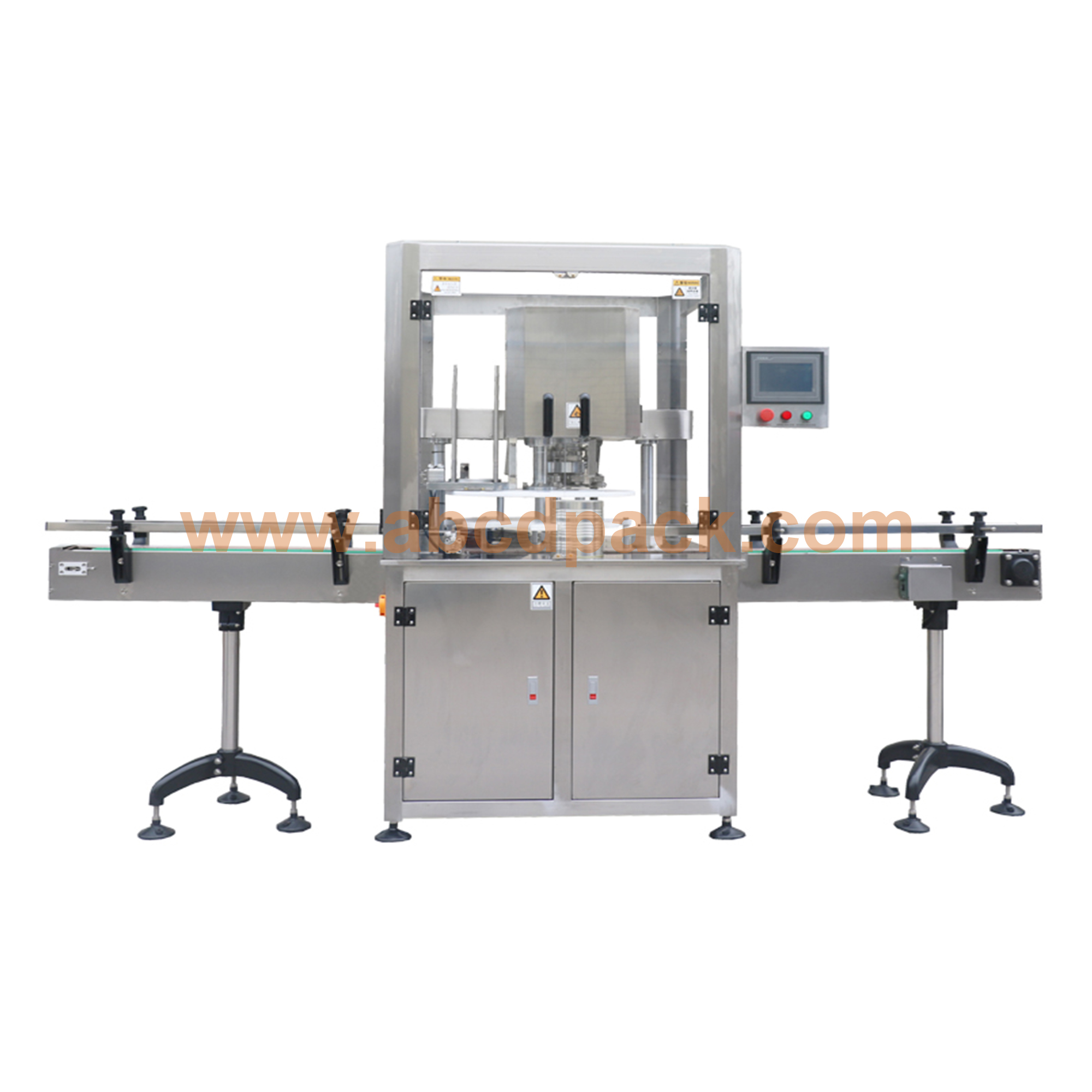

Product name:Automatic vacuum nitrogen can seaming machine
Model No:ADFG-7
Features:
Product Description 1. This product is mainly suitable for all kinds of round bottle sealing packaging of PET plastic, iron, aluminum, etc. with advanced design, reasonable structure and simple operation, it is a necessary and ideal packaging equipment for food, medicine, milk powder and chemical industry; 2. The main body of the product is made of 304 stainless steel, which is simple and beautiful, and meets the design requirements of the standard production workshop; 3. The parts of this product are processed precisely, and the production technology and process are precipitated and continuously improved by our long-time customer experience. The key parts adopt unique design, with high strength, low noise and good sealing performance; This product is in line with the national standards, food standards, enterprise standards, and is allowed to leave the factory after strict inspection and testing. 4. Using PLC servo control system and touch screen interface operation, it is very simple and clear to use.

Product specifications

Main parameters of the machines

Data sheets

Dateils

Model detail

ADFG-7  Automatic vacuum nitrogen can seaming machine

Seaming speed

5-7cans/min

Can range

H 30-100mm(Adjustable),

D 35-150mm(customized)

Air required

0.6Mpa

Power

2.5kw

Voltage

AC22V 50/60Hz (single phase)

Working temperature/humidity

0-45℃,5-85%

Oversize(L*W*H)

3000(L)*1060(W)1800(H)mm

Net weight

800KG
