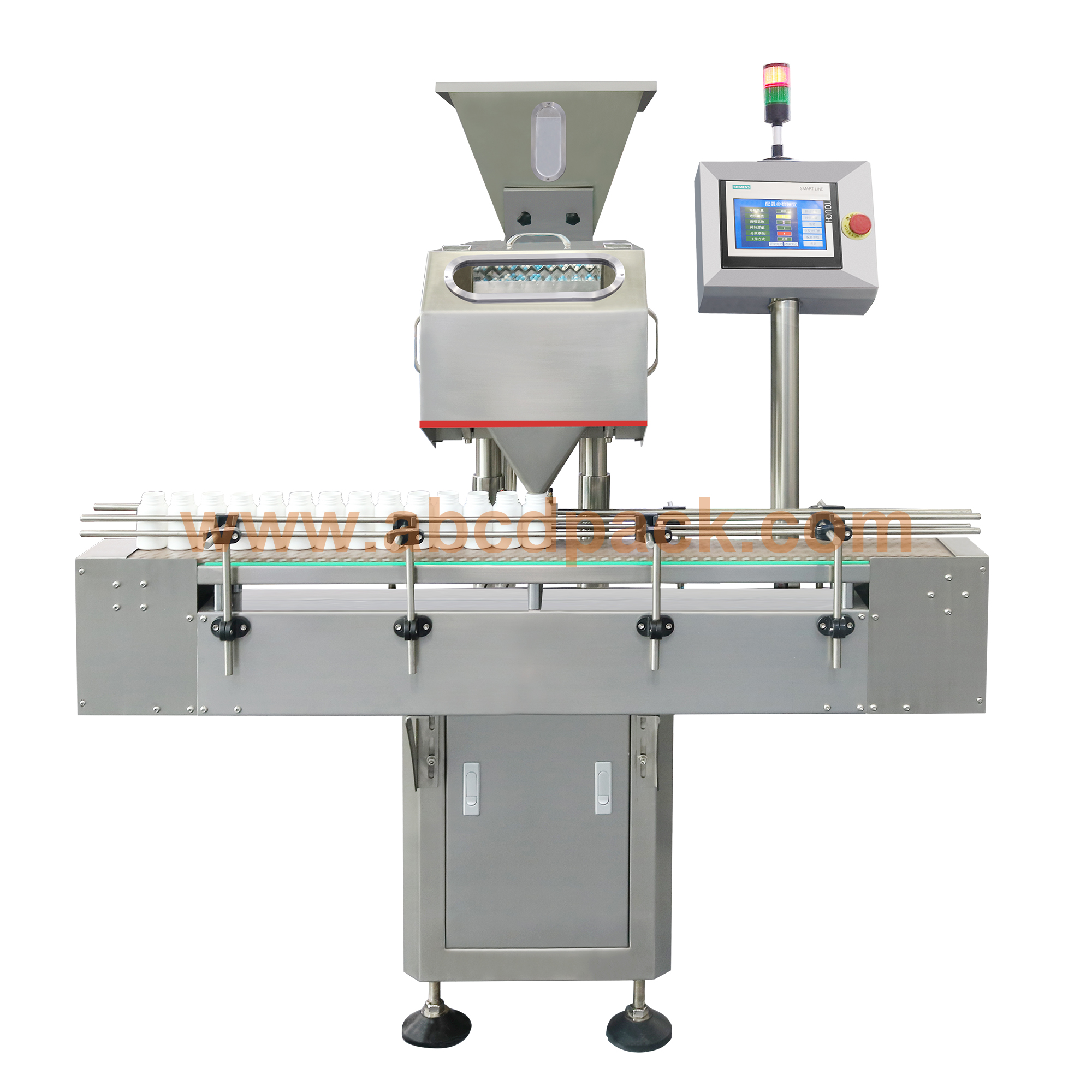

Product name:8 lanes Pills tablet capsule counting filling machine
Model No:AXGZ-DSL-8
Features:
Product Description 1.High accuracy. With accuracy rate of counting and filling is more than 99.5%, which is higher than the industry standard. 2.The flap packing mechanism has obtained the national patent, which does not damage the material when opening and closing. 3.Using anti-high dust electronic counting technology, it can work normally in high dust environment with good stability. 4.It has strong compatibility and wide application range. It can count and pack solid particles of various specifications such as tablets, capsules and pills. 5.Multi stage vibration design. It can effectively separate large, irregular and viscous materials and count them accurately. 6.High level of intelligence. It has the function of on-line monitoring of bottles, materials and all kinds of faults, and automatic alarm. 7.High integration. According to the size of the customer site, production level, and before and after the process line control, improve efficiency, save labor. 8.Easy to use. It covers a small area and needs no tools for dismantling and clearing. It is convenient and fast. 9.Economical. The product has high cost performance, low maintenance cost, and the original machine is equipped with wearing parts for one year. 10.For the products that are easy to plug and need special feeding, the nozzle can be customized according to the actual needs. (optional)

Product specifications

Main parameters of the machine

Data sheets

Details

Name and model

AXGZ-DSL-8 8 lanes Pills tablet capsule counting filling machine

Output

5~30 bottles/minute (according the bottle, material, capacity)

Counting accuracy

>99.5%

Diameter of filling material

Φ5.5-12mm tablet, 3-12mm pill, 0-5mm capsule

Bottle capacity

1-9999pcs/bottle

Applicable bottle

Φ25~75mm round/square bottle, height ≤ 240mm

Power

0.6KW

Voltage

AC220V, single phase, 50/60HZ

Net weight

300kg

Working pressure

0.6Mpa

Dimension(L*W*H)

1400*1350*1650mm

Basic construction

Whole machine is made of SUS304 stainless steel, contact part is made of  SUS 316
