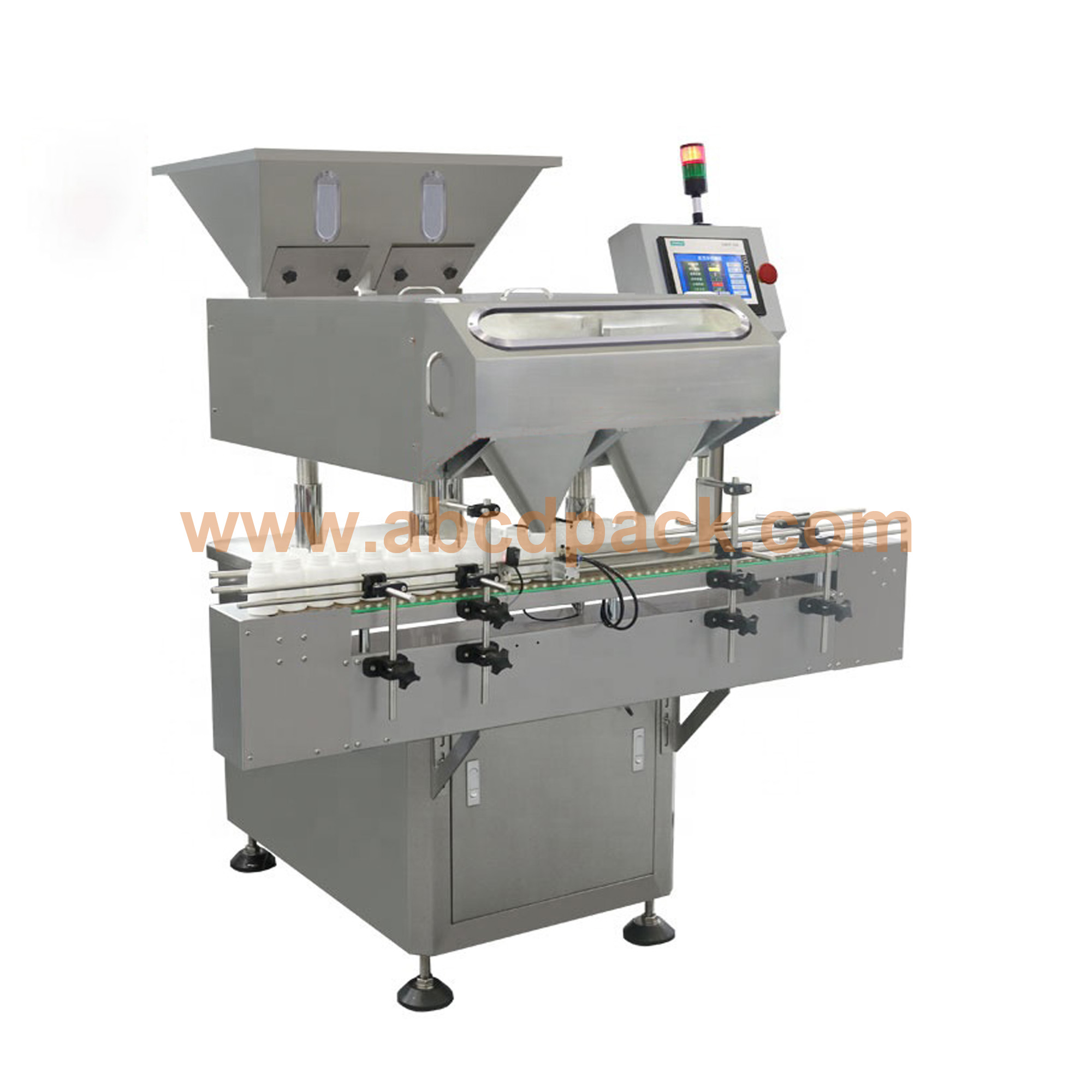

Product name:16 lanes automatic tablet counting filling machine
Model No:AXGZ-DSL-16
Features:
Product Description 1.High accuracy. With accuracy rate of counting and filling is more than 99.5%, which is higher than the industry standard. 2.The flap packing mechanism has obtained the national patent, which does not damage the material when opening and closing. 3.Using anti-high dust electronic counting technology, it can work normally in high dust environment with good stability. 4.It has strong compatibility and wide application range. It can count and pack solid particles of various specifications such as tablets, capsules and pills. 5.Multi stage vibration design. It can effectively separate large, irregular and viscous materials and count them accurately. 6.High level of intelligence. It has the function of on-line monitoring of bottles, materials and all kinds of faults, and automatic alarm. 7.High integration. According to the size of the customer site, production level, and before and after the process line control, improve efficiency, save labor. 8.Easy to use. It covers a small area and needs no tools for dismantling and clearing. It is convenient and fast. 9.Economical. The product has high cost performance, low maintenance cost, and the original machine is equipped with wearing parts for one year. 10.For the products that are easy to plug and need special feeding, the nozzle can be customized according to the actual needs. (optional)

Product specifications

Main parameters of the machine

Data sheets

Details

Model and Name

AXGZ-DSL-16  Automatic tablet counting filling machine

Speed

10-30bottle/min base on the bottle size

Filling Range

10-500g

Filling Accuracy

99.8%,100~500g<=+-0.5g

Vibration structure

Do not damage materials during operation

Multistage vibration cutting device

It can effectively separate large, irregular and viscous materials, and can count accurately

Dust suction device

The three-stage vacuum device has a good effect on materials with large dust



Power

1.2KW

Warranty

12 Months

Voltage

AC220/110V 50/60Hz (1 Phase)

Weight

500Kg

Size(L*W*H)

1600*1550*1650mm
