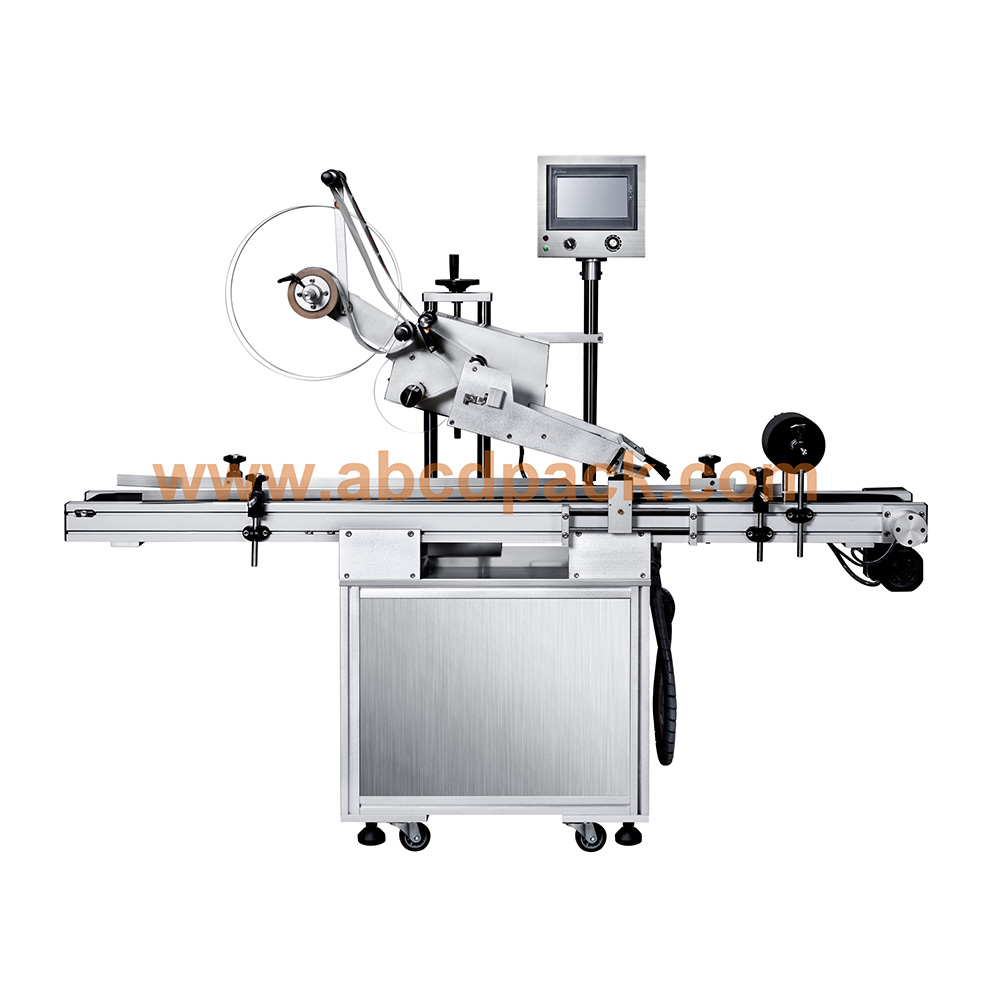

Product name:Top labeling machine
Model No:AL-3130
Features:
Product Description 1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc. 2. Applicable products: Products that require labels or films on flat and large curved surfaces. 3. Application industry: widely used in printing, stationery, food, daily chemicals, electronics, medicine, and other industries. 4. Application examples: book plane labeling, folder labeling, packaging box labeling, envelope labeling, sheet labeling, lead box labeling, stationery box labeling, PE bag labeling, PVC labeling, packaging bag labeling Label, notebook labeling, blood bag labeling, salt bag labeling, stainless steel tableware labeling, tableware automatic labeling, bag labeling, plastic packaging labeling, laptop battery labeling, tape labeling, tableware advertising labeling, power supply Adapter labeling, etc.

Product specifications

Main parameters of the machine

Data sheets

Details

Name and model

AL-3130   Fully automatic plane labeling machine

Labeling speed(max)

21m/min

Label  length

10-300mm

Label  width(max)

130mm

Conveyor belt width

140mm

Applicable product size

length: 40mm ~ 400mm

width: 40mm ~ 140mm

thickness: 0.2mm ~ 150mm

Outside diameter of label roll(max)

Φ350mm

Inside diameter of label roll(max)

Φ76mm

Accuracy of labeling

±1mm

Overall size(L*W*H)

1800*800*1600mm
