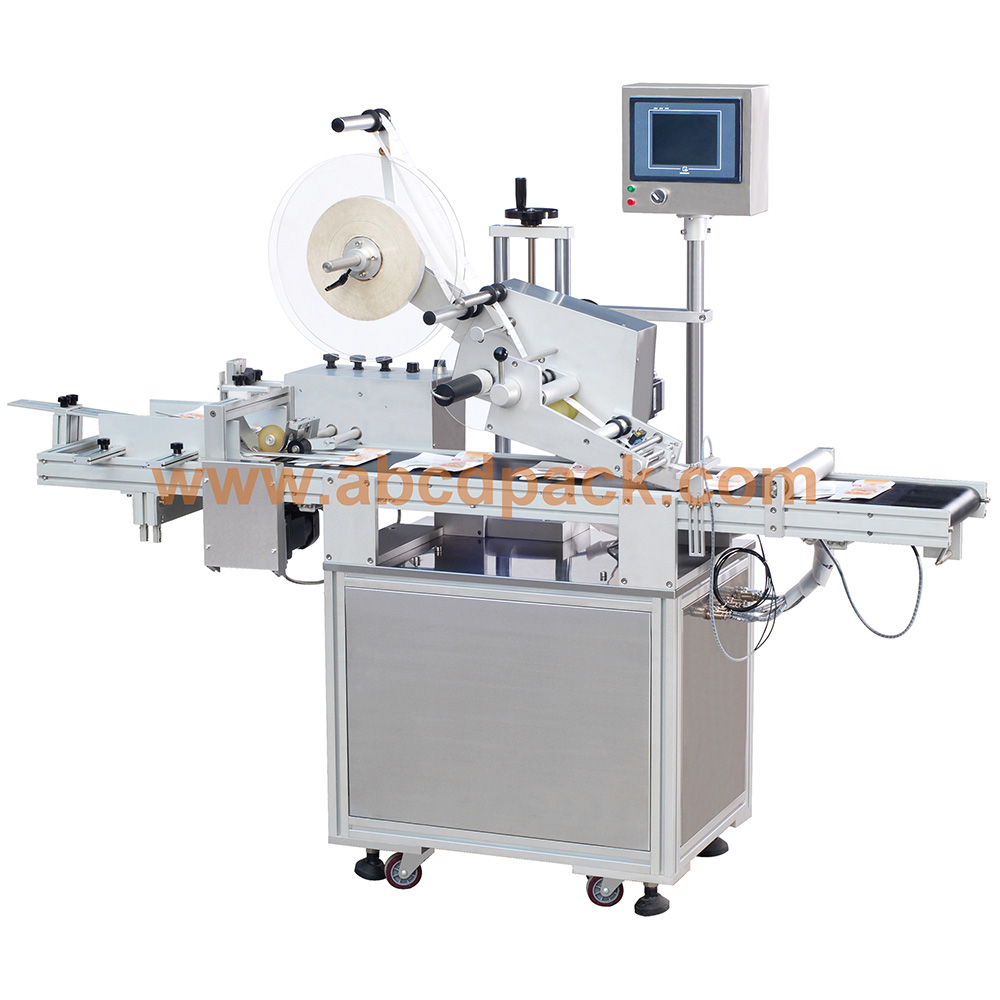

- Product name：Sheet Feeding labeling machine
- Model No：AL-3130F
- Features：

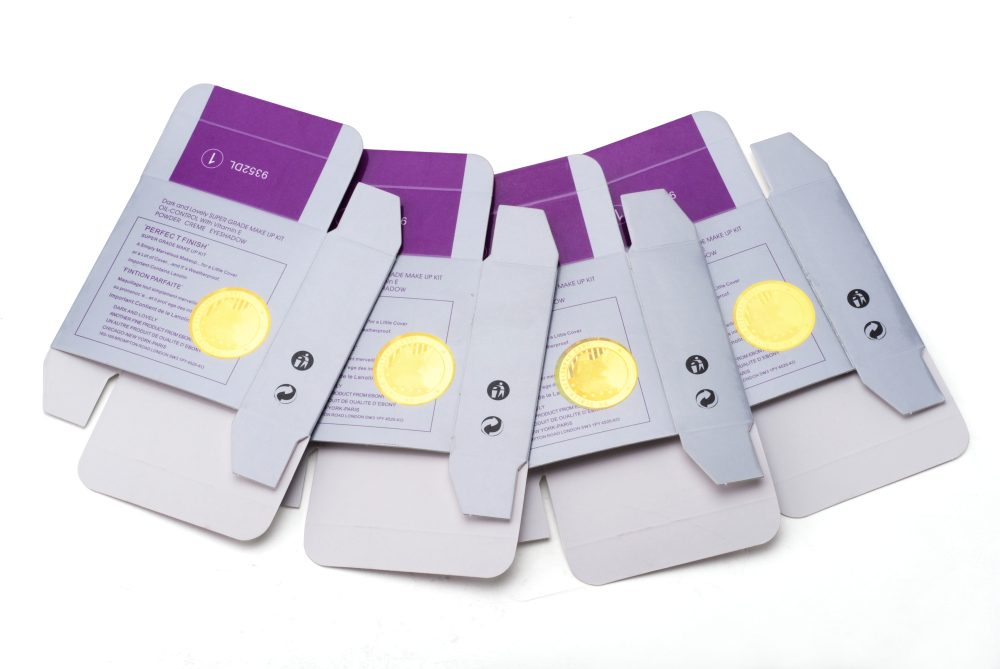

Product Description 1. Applicable labels: self-adhesive labels, self-adhesive films. 2. Application industry: widely used in electronics, hardware, plastics, chemical and other industries. 3. Application examples: cardboard labeling, acrylic film, large plastic film, ceramic film, IC card labeling, etc.
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AL-3130F Automatic page cards labeling machine |
|
Labeling speed(max) |
21m/min |
|
Label length |
10-300mm |
|
Label width(max) |
130mm |
|
Conveyor belt width |
300mm (Can be customized) |
|
Applicable product size |
Length: 40mm ~ 280mm Width: 40mm ~ 200mm Height: 0.2mm ~ 2mm |
|
Outside diameter of label roll(max) |
Φ350mm |
|
Inside diameter of label roll(max) |
Φ76mm |
|
Accuracy of labeling |
±1mm |
|
Overall size(L*W*H) |
2200*1800*1600mm |
