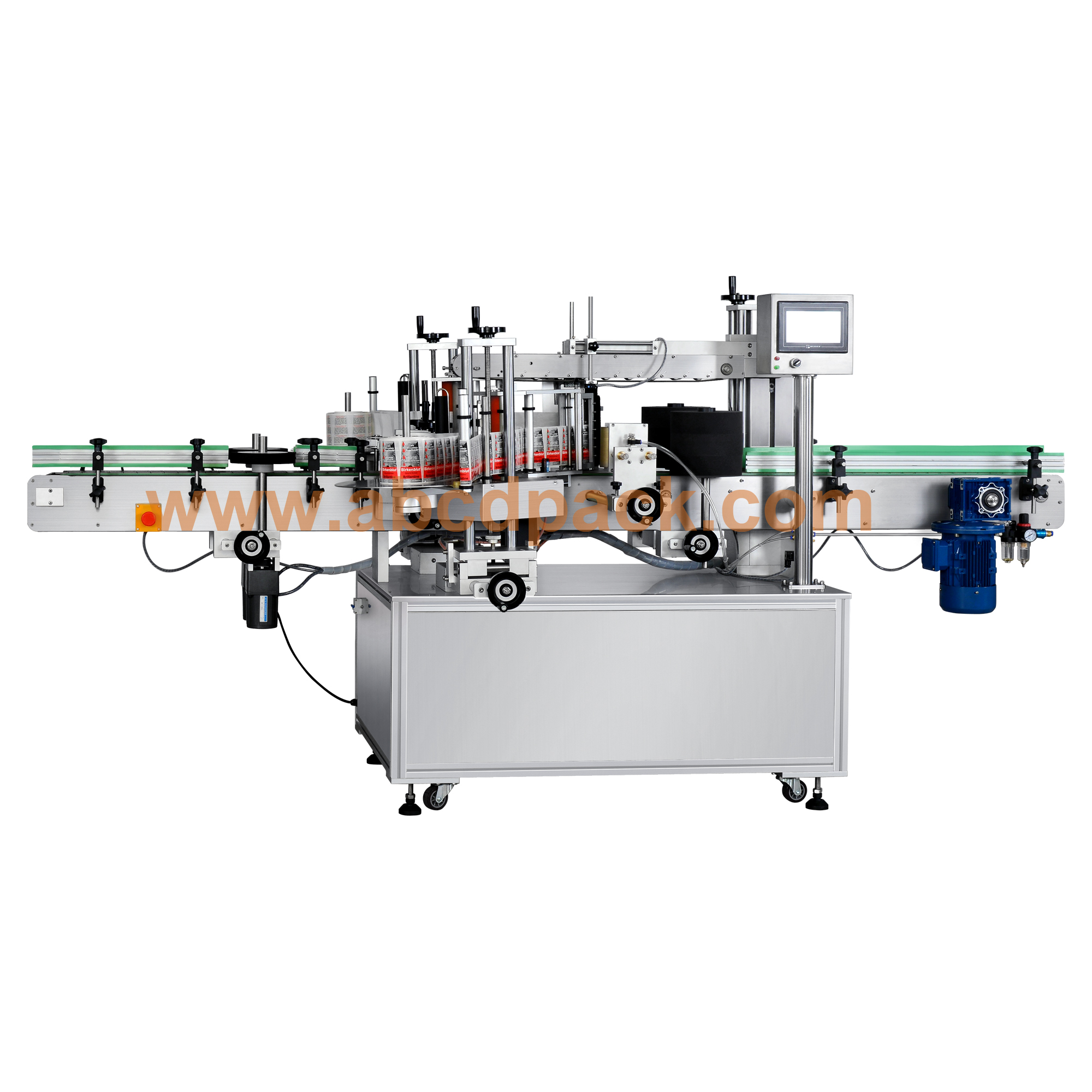

- Product name：Double side labeler
- Model No：AL-8180BS
- Features：
Specialty: 1. Adopting Germany SIEMENS PLC control 2. Adopting easy operation large touch screen 3. Adopting Panasonic servo motor system 4. Adopting famous brand sensors 5. Can be equipped coding machine，or ink-jet printer
Product specifications
Main Technical Parameters ：
|
Standard Model |
AL-8180BS |
|
label width（max） |
180mm |
|
Label length |
10-300mm |
|
Conveyer belt width |
100mm |
|
Outside diameter of label roll |
φ350mm |
|
Inside diameter of label roll |
φ76mm |
|
Max labeling speed |
36 m/min |
|
Accuracy of labeling |
±1mm |
|
Overall size ( L* W* H) |
2850 mm * 1100 mm * 1600 mm |
