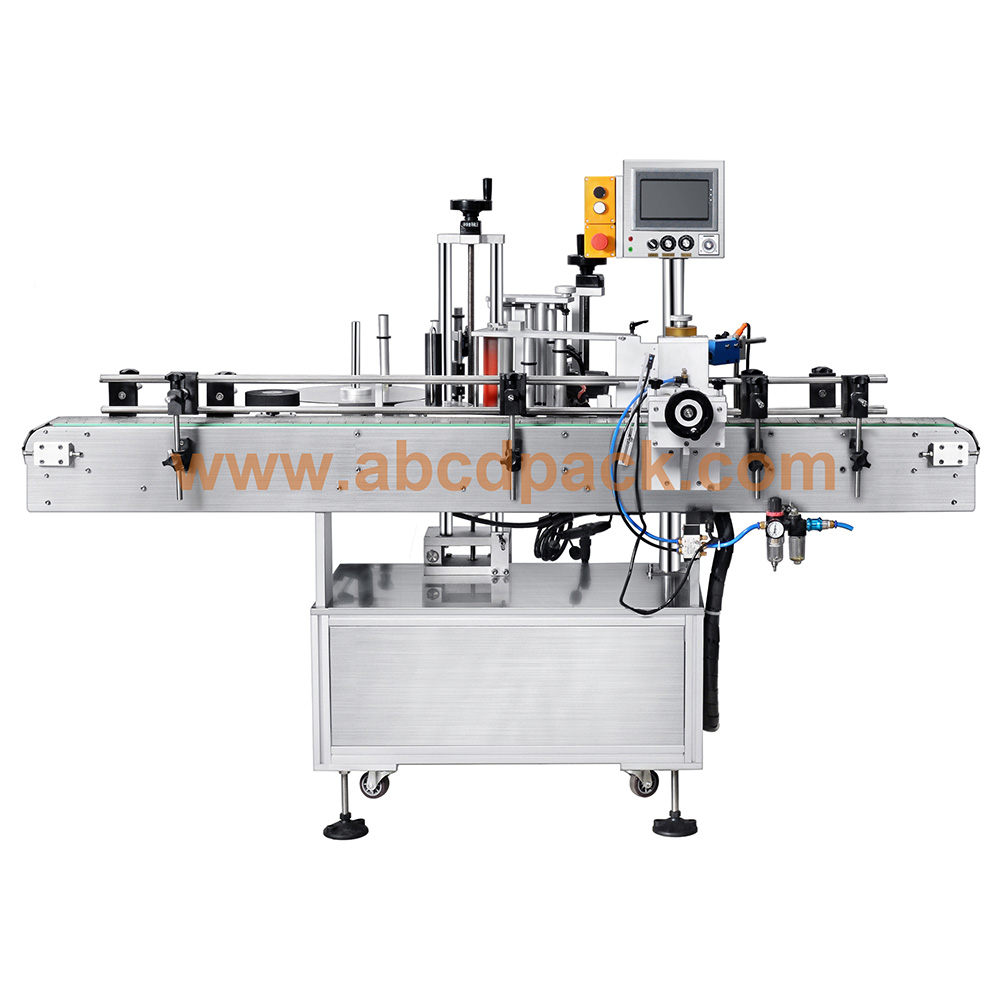

- Product name：Round wrap labeling machine
- Model No：AL-5130D
- Features：
Product Description 1.It is suitable for labeling on the circumferential surface of round bottle objects. 2.It sticks single label and double labels on round bottle. The front and back labels space can be flexibly adjusted, such as gel water round bottle, food round cans and other labeling, widely used in cosmetics, food, medicine, Disinfecting water and other industries. 3.Optional orientation positioning detection device can be used to label the specified position on the surface. 4.The optional coding printer and ink-jet printer can realize the printing date and batch number on the labels.
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AL-5130D Automatic round bottle labeling machine |
|
Labeling speed(max) |
21m/min |
|
Label length |
10-300mm |
|
Label width(max) |
130mm or 180mm |
|
Conveyor belt width |
101.6mm |
|
Diameter of bottle(max) |
Φ110mm |
|
Outside diameter of label roll(max) |
Φ350mm |
|
Inside diameter of label roll(max) |
Φ76mm |
|
Accuracy of labeling |
±1mm |
|
Overall size(L*W*H) |
2200*950*1600mm |
