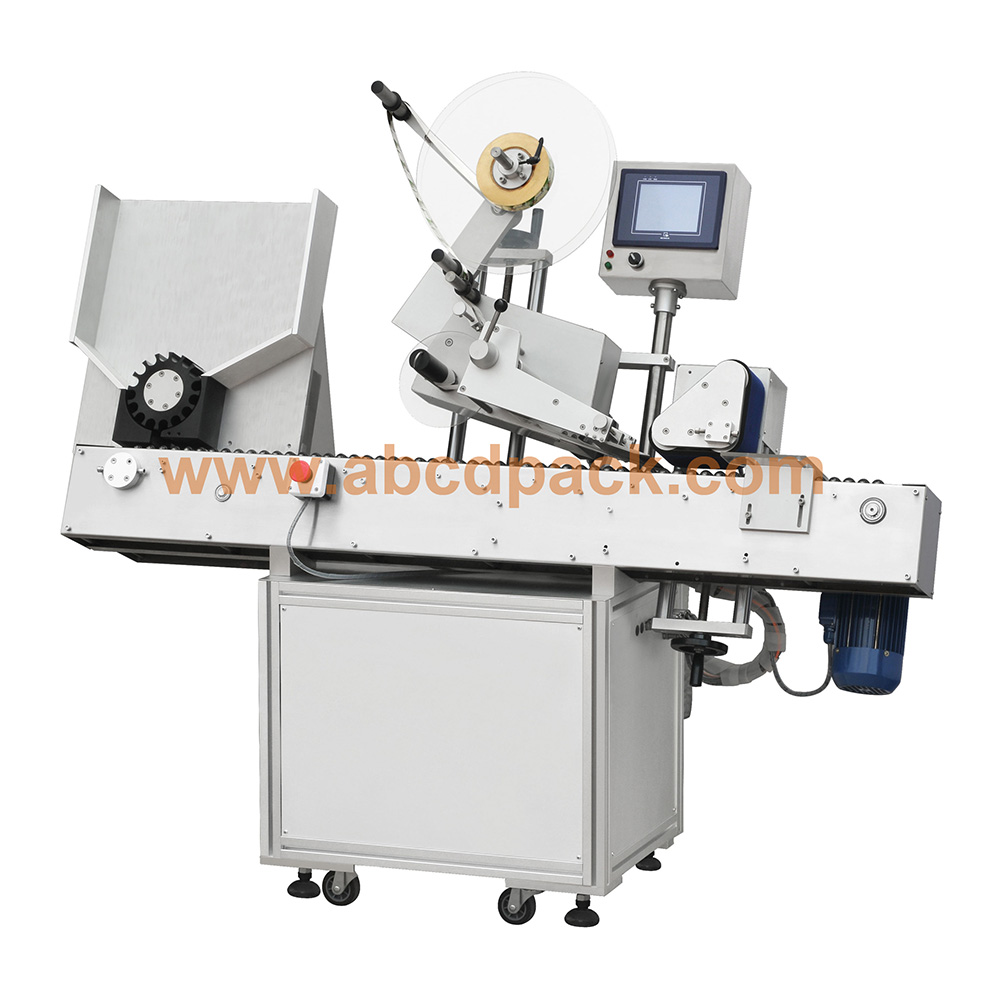

- Product name：Horizontal vial rolling labeling machine
- Model No：AL-7100
- Features：
Product Description 1. The automatic horizontal round bottle labeling machine is one type of the round bottle labeling machine. It is suitable for the circumference of cylindrical objects with unstable standing 2. Optional code printer or printer to label head 3. Applicable labels: self-adhesive labels, self-adhesive films. 4. Applicable products: round bottle with diameter between Φ15mm and Φ22mm. (Other specifications can be customized) 5. Application examples: lipstick labeling, lipstick labeling, oral liquid labeling, pen labeling, etc.
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AL-7100 Automatic horizontal roller labeling machine |
|
Labeling speed(max) |
21m/min |
|
Label length |
10-200mm |
|
Label width(max) |
100mm |
|
Conveyor belt width |
100mm |
|
Diameter of object |
15~22mm |
|
Outside diameter of label roll(max) |
Φ350mm |
|
Inside diameter of label roll(max) |
Φ76mm |
|
Accuracy of labeling |
±1mm |
|
Overall size(L*W*H) |
1800*800*1600mm |
