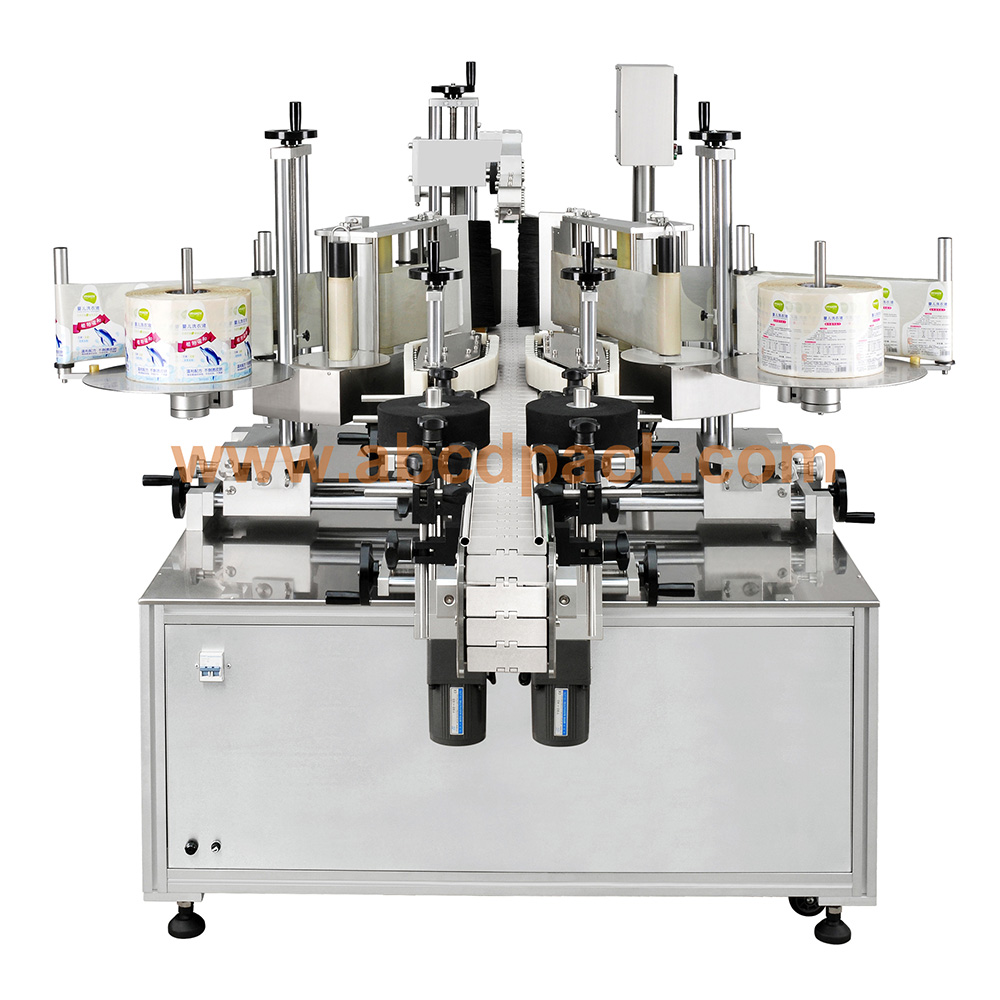

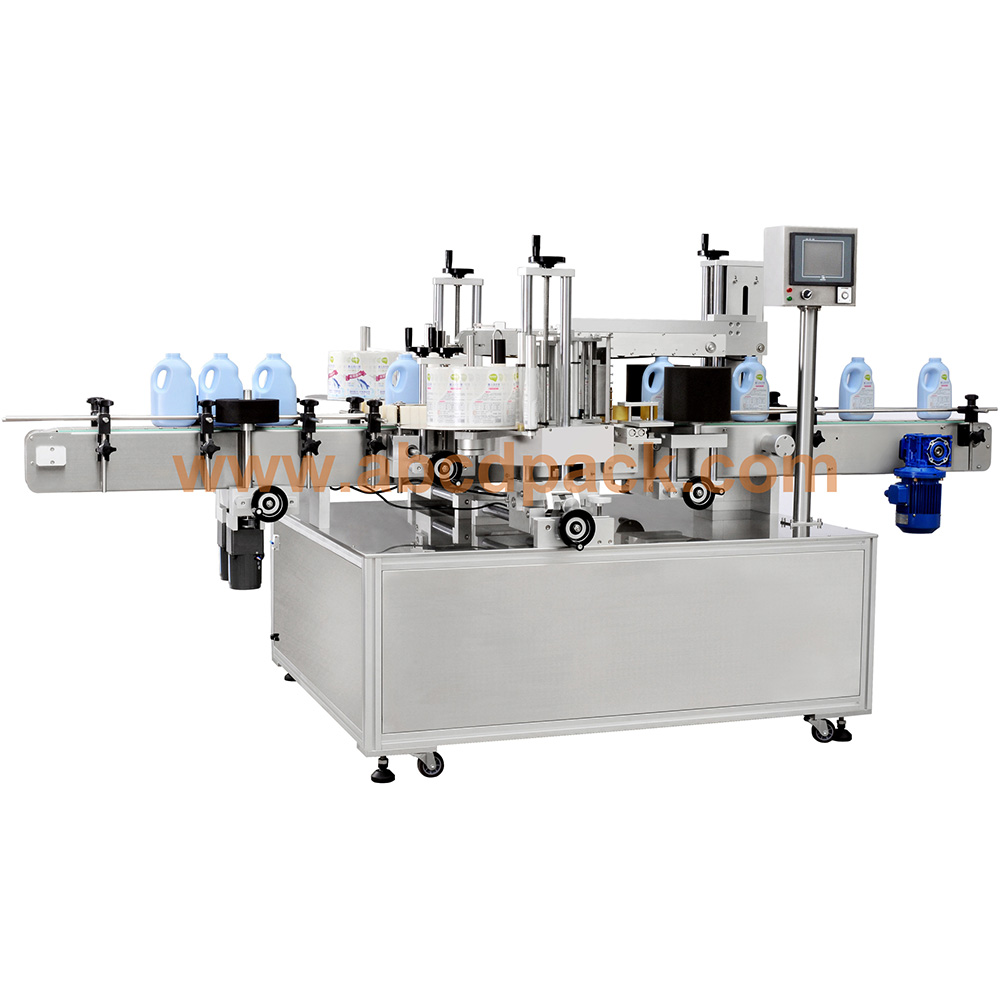

Product name:Front-back labeling machine
Model No:AL-9180
Features:
Automatic two sides labeling machine Specialty: Adopting Germany SIEMENS PLC control Adopting easy operation large touch screen Adopting Germany label sensor Adopting Japan object sensor All machines are made of SUS304 stainless steel and 6063 aluminum alloy Labeling head can deflex ±20o to suit taper bottle Can be equipped coding machine (optional

Product specifications

Standard Model

AL-9180

Label width(max)

180mm

Label length

10-300mm

Conveyer belt width

101.6mm

Diameter of bottle(max)

φ110mm

Outside diameter of label roll(max)

φ350mm

Inside diameter of label roll

φ76mm

Labeling speed(max)

21 m/min

Accuracy of labeling

±1mm
