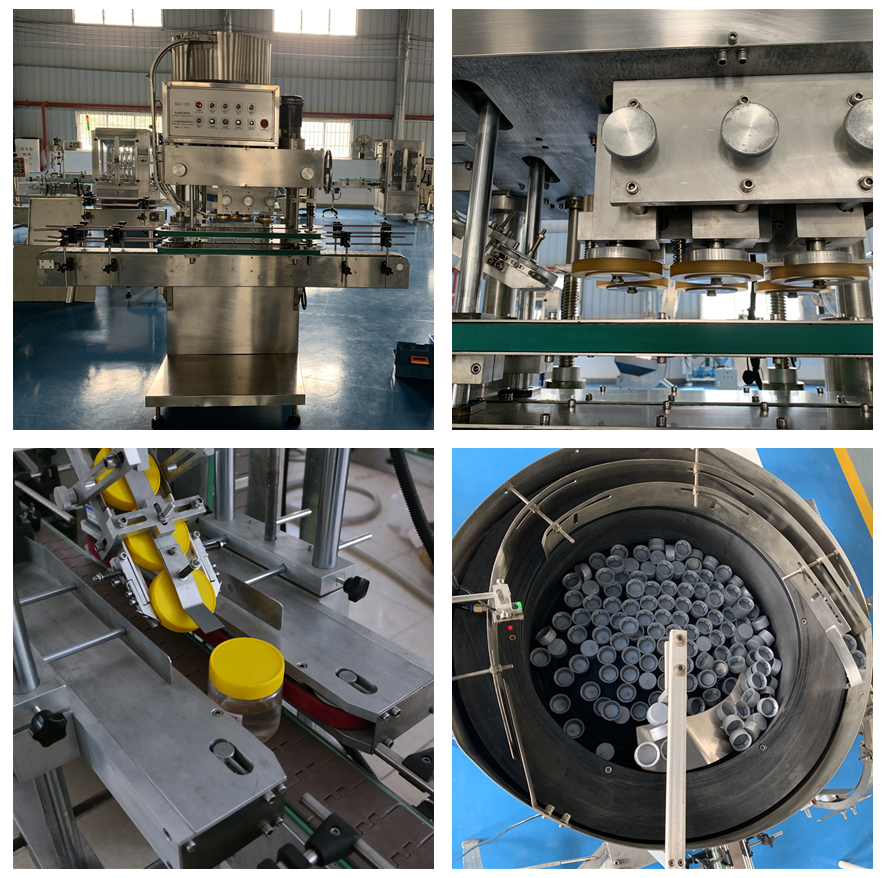

Product name:Automatic capping machine with sorting bowl
Model No:XGC-100C
Features:

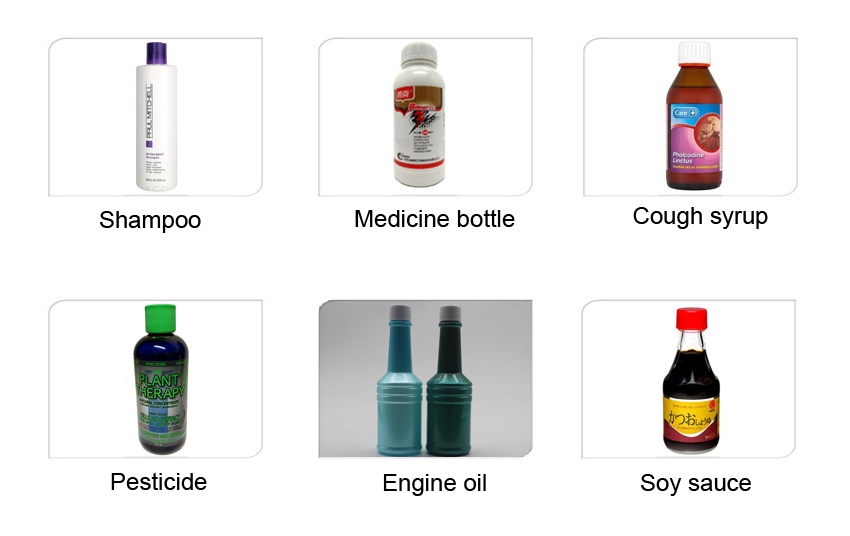

Product Description 1. With 6 rolls turn cap, fast screwing. 2. Only need to adjust the timing belt, the distance between the cap wheel and the height of the frame to adapt to the bottle of various specifications within the applicable range without replacing parts. 3. Suitable for all kinds of high and low bottles, the bottles can be round, square, oblate or flat.

Product specifications

Main Technical Parameters

Data sheets

Details

Name and model

XGC-100C   Automatic cap closing machine with sorting bowl

Closing cap motor

Gear motor

Cap closing speed

0~100 caps/minute (according customer cap sample sizes)

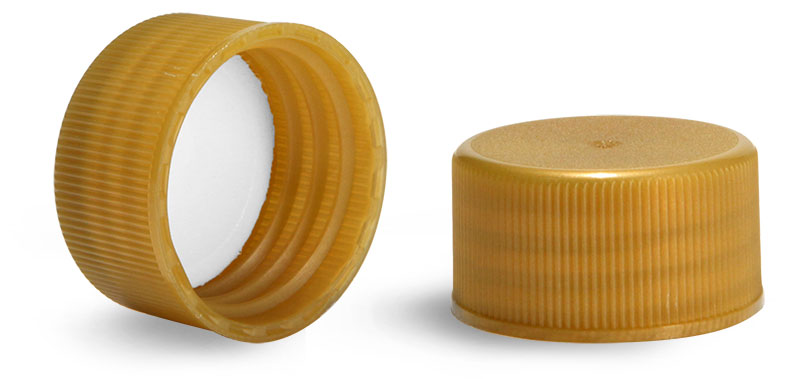

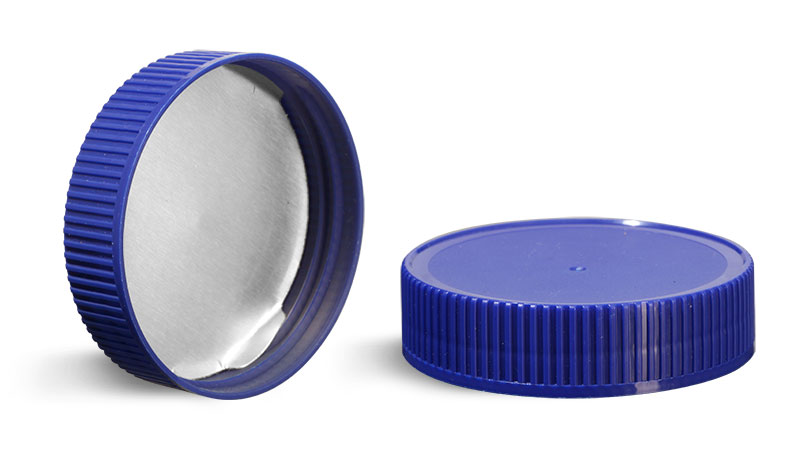

Applicable cap size

Φ20mmDΦ35mm

Applicable bottle

Φ30mmDΦ100mm

Applicable bottle height size

50mmH280mm

Power

1.5Kw

Working pressure

0.6MP

Voltage

AC220V, single phase, 50/60HZ

Air consumption

1200L one hour (speed 3600 bottles/hour)

Net weight

500 Kgs

Machine size(L*W*H)

1150*1000*2210mm

Machine direction

From left to right

Operation process

Products on conveyor —>caps sorted automatic or manual—> closing by six rubber rolls—> finish
