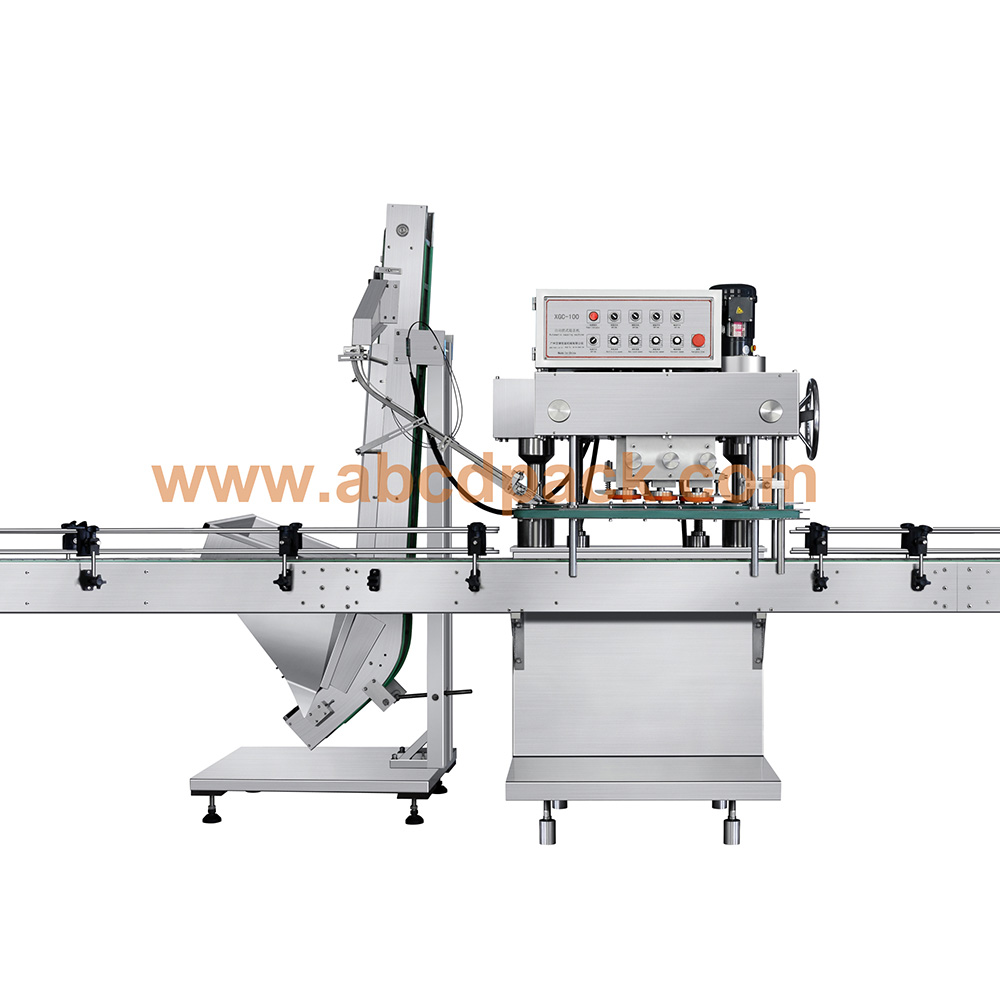

- Product name：Automatic capping machine with bunker elevator caps sorting device
- Model No：XGC-100B
- Features：
Product Description 1. With 6 rolls turn cap, fast screwing. 2. Only need to adjust the timing belt, the distance between the cap wheel and the height of the frame to adapt to the bottle of various specifications within the applicable range without replacing parts. 3. Suitable for all kinds of high and low bottles, the bottles can be round, square, oblate or flat.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
XGC-100B Automatic cap closing machine with elevator caps sorting device
Closing cap motor
Gear motor
Cap closing speed
0~100 caps/minute (according customer cap sample sizes)
Applicable cap size
Φ35mm≤D≤Φ80mm
Applicable bottle
Φ20mm≤D≤Φ100mm
Applicable bottle height size
50mm≤H≤280mm
Power
1.5KW
Voltage
AC220V, single phase, 50/60HZ
Air consumption
1200L one hour (speed 3600 bottles/hour)
Working pressure
0.6MP
Net weight
600Kgs
Machine size(L*W*H)
3000*1400*1800mm
Packing size(L*W*H)
1150*1000*1800mm, 2400*500*800mm, two W/C
Machine direction
From left to right
Operation process
Products on conveyor —>caps sorted automatic or manual—> closing by six rubber rolls—> finish
