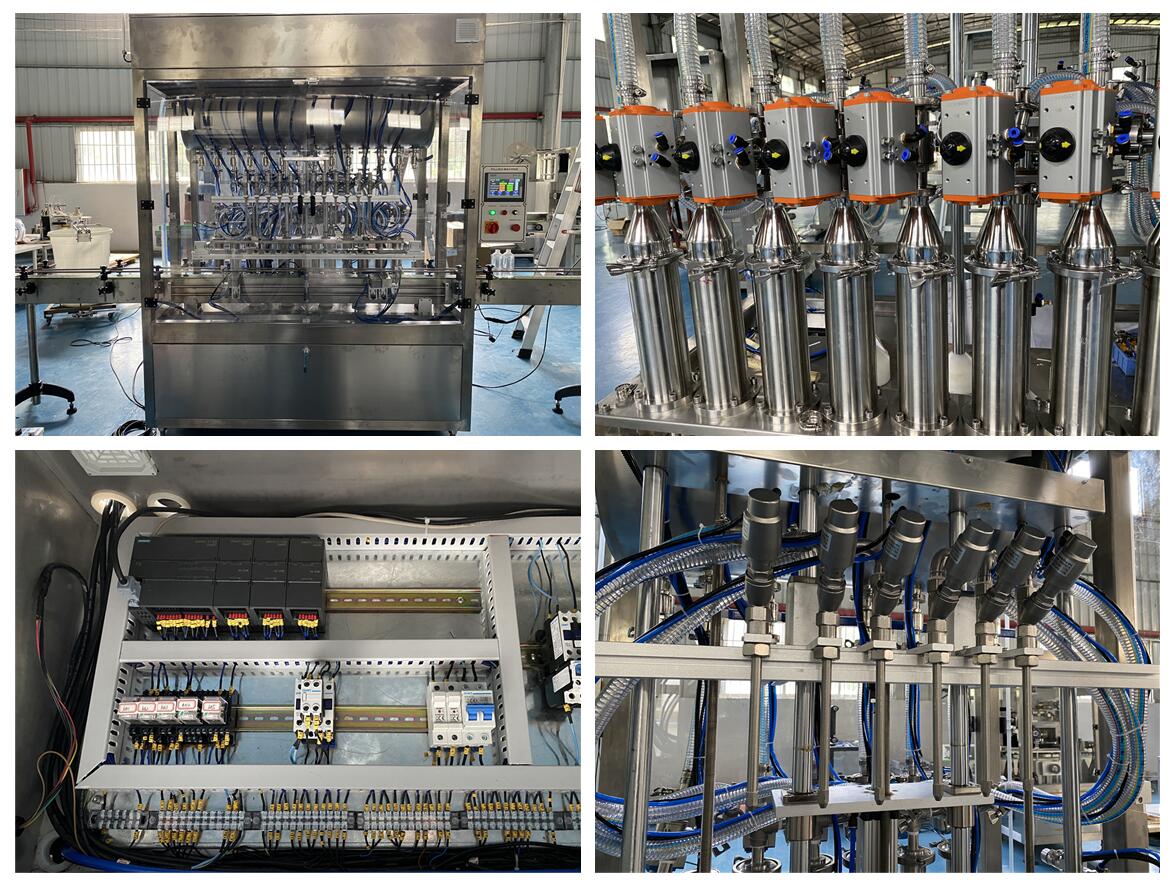

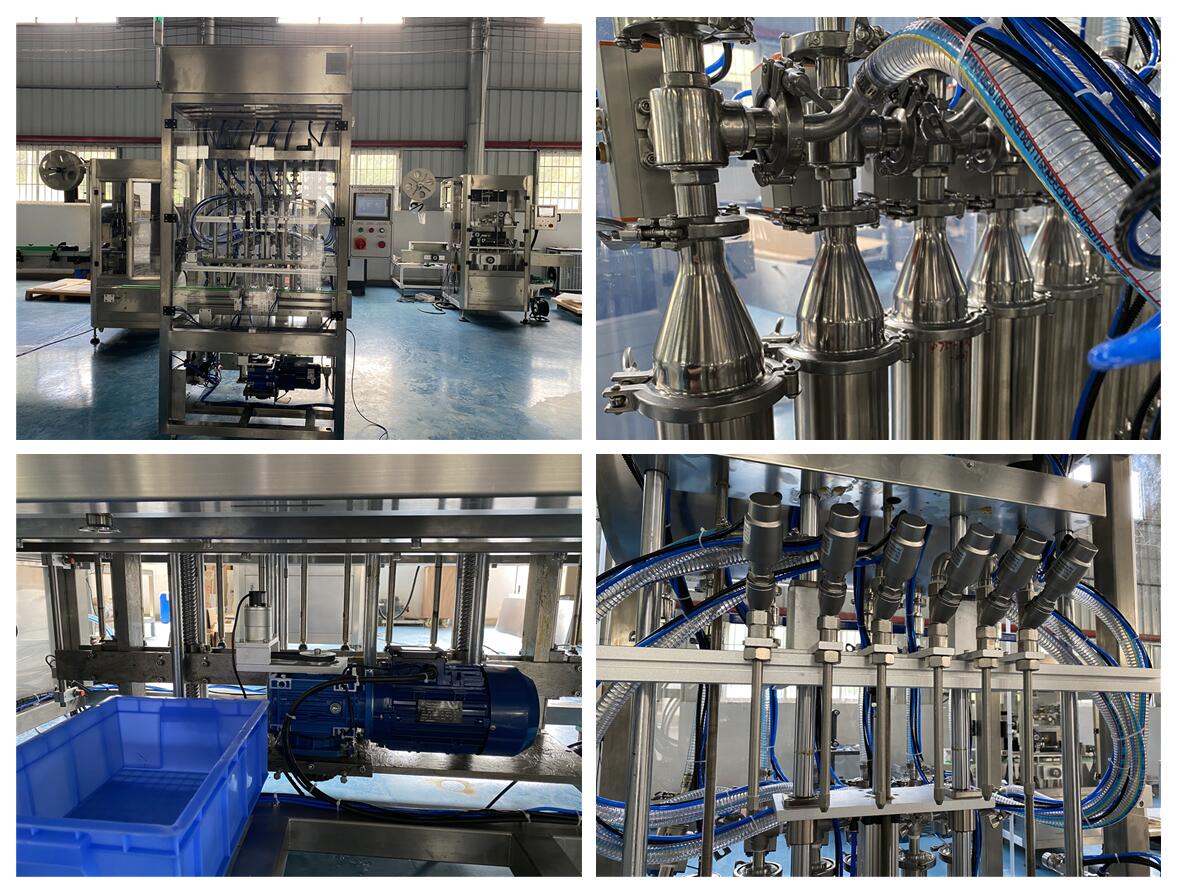

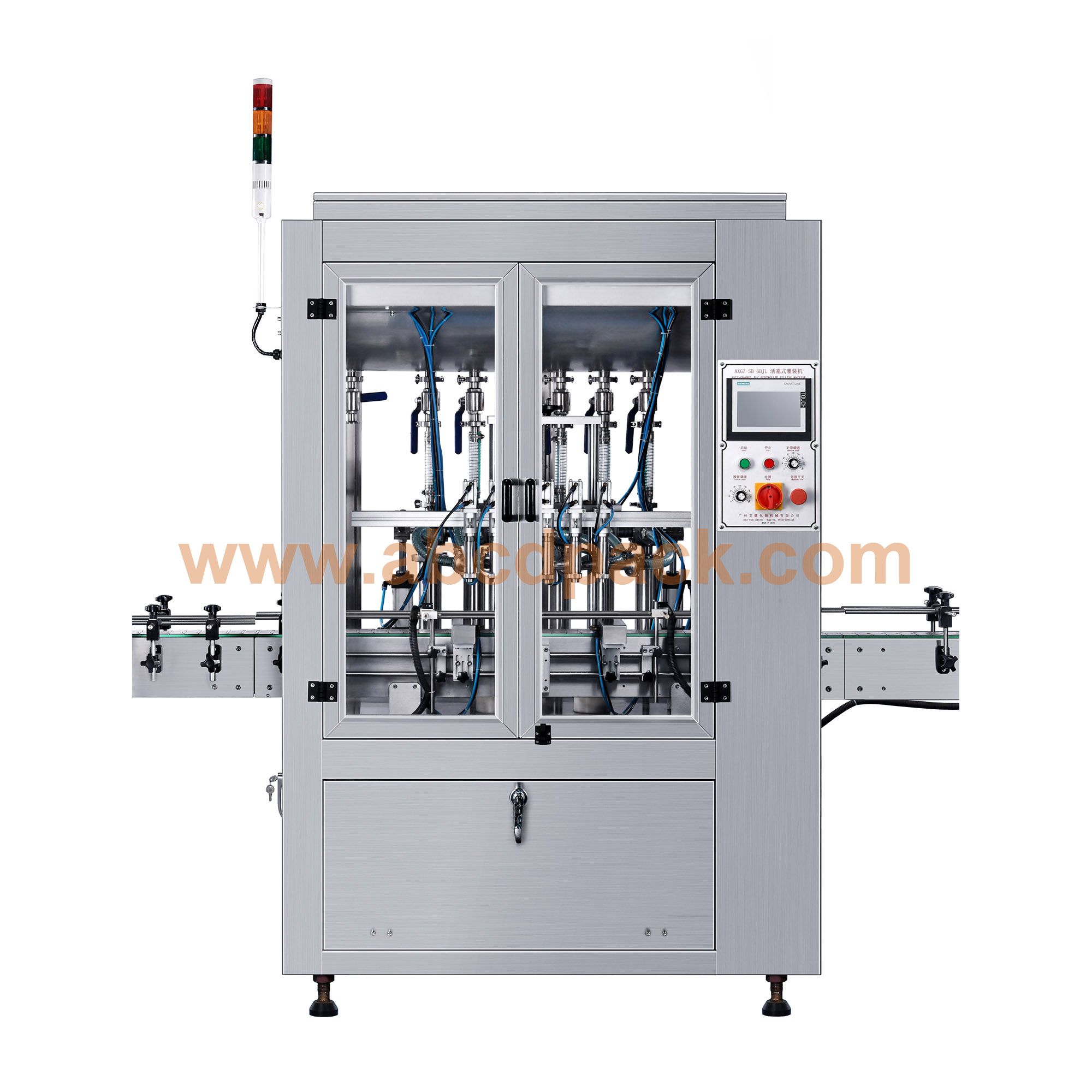

Product name: Auto piston filler drived by inverter motor
Model No:AXGZ-SB
Features:
Application: This type of filler is best suited for liquids with low to medium viscosity. liquids with solid particulates not exceeding 1/16″ can also be filled. Examples: Sauces, syrups, light gels and shampoos, foamy cleansers and chemicals, water and other non carbonated aqueous beverages. Advantages: High performance, easy to clean, easy to operate, expandable at low cost. Offers greatest flexibility at lowest cost, The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler’s master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.

Product specifications

Main parameters of the machine

Data sheets

Details

Name and model

AXGZ-SB-4

AXGZ-SB-4B

AXGZ-SB-6

AXGZ-SB-6B

AXGZ-SB-8

AXGZ-SB-8B

AXGZ-SB-12B

Max filling speed (pcs/hour)

1500~2000

1800~3000

2000~3500

3000~4500

Net/gross weight (Kgs)

500/600

600/700

700/800

1000/1100

Applicable bottle diameter size

Φ20 ≤D≤Φ100mm

Applicable bottle height size

30≤H≤300 mm

Filling dose

100~ 1000ml

Filling accuracy

±1%

Voltage

AC220V, single phase, 50/60HZ

Power

2.0KW

Working pressure

0.6MP

Air consumption

700L one hour

Machine size(L*W*H)

2000*1200*2250mm

Machine direction

From left to right

Operation process

Put products on conveyer—>Block bottles—> sensor count the empty bottles—> bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles
