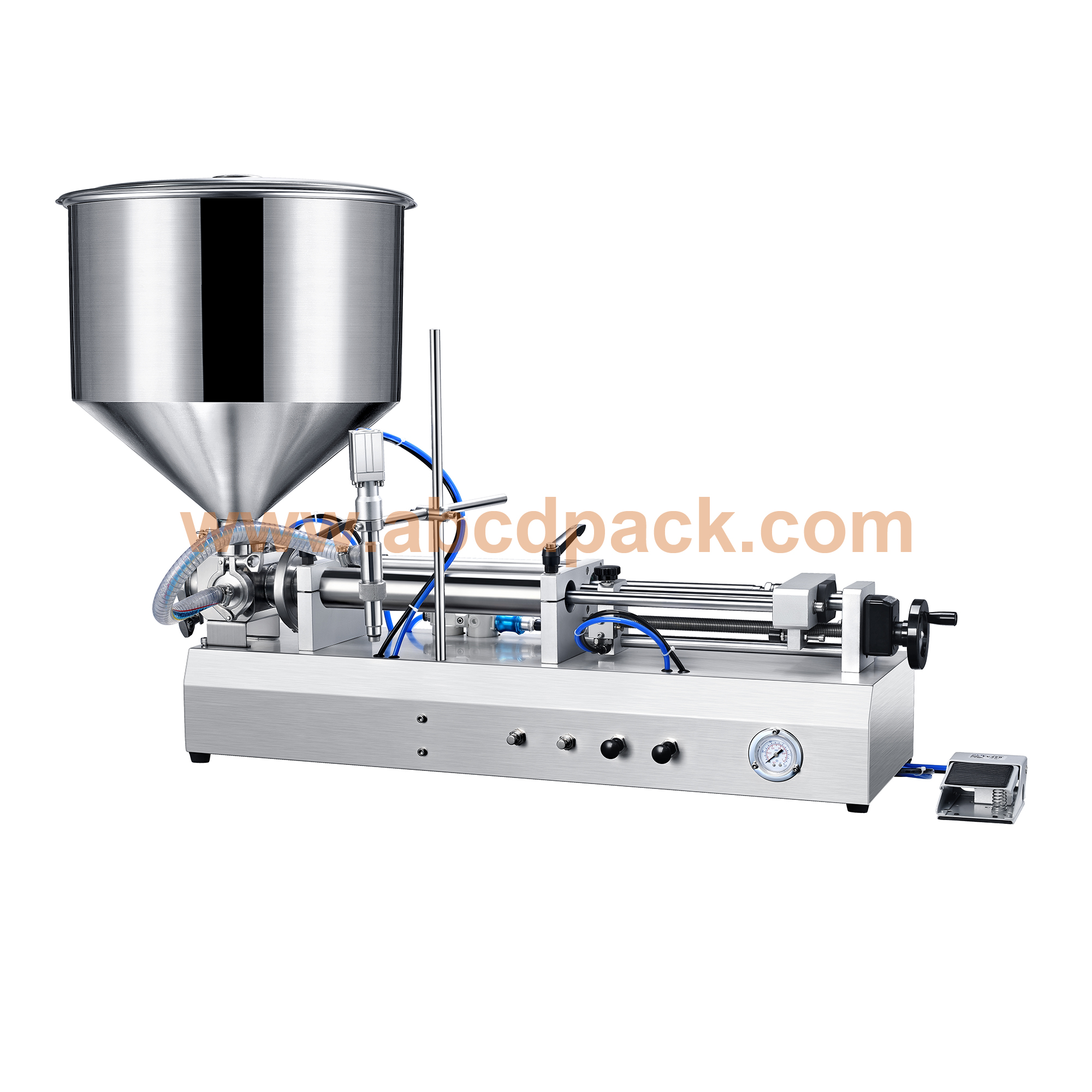

Product name:Semi auto cream filling machines
Model No:ADF serial
Features:
Product Description 1. High filling accuracy 2. Adopting SUS304 or SUS316L stainless steel 3. Fully pneumatic control 4. Easy operation easy cleaning 5. Ideal for pastes and liquid filling with a certain viscosity

Product specifications

Main Technical Parameters

Model detail

ADF-1-60K

ADF-1-120K

ADF-1-500K

ADF-1-1000K

Filling volume

20-60ml

50-120ml

100-500ml

100-1000ml

Filling Speed

B/min

0-40

0-40

0-40

0-40

Accuracy

1ml

1ml

1%

1%

Net weight

22kg

24kg

28kg

31kg

Gross weight

40kg

40kg

45kg

48kg

Volume weight

95kgs

95kgs

95kgs

95kgs

Oversize (mm) (L*W*H)

1100*760*670

1100*760*670

1100*760*670

1100*760*670

Required air

0.55Mpa~0.65Mpa
