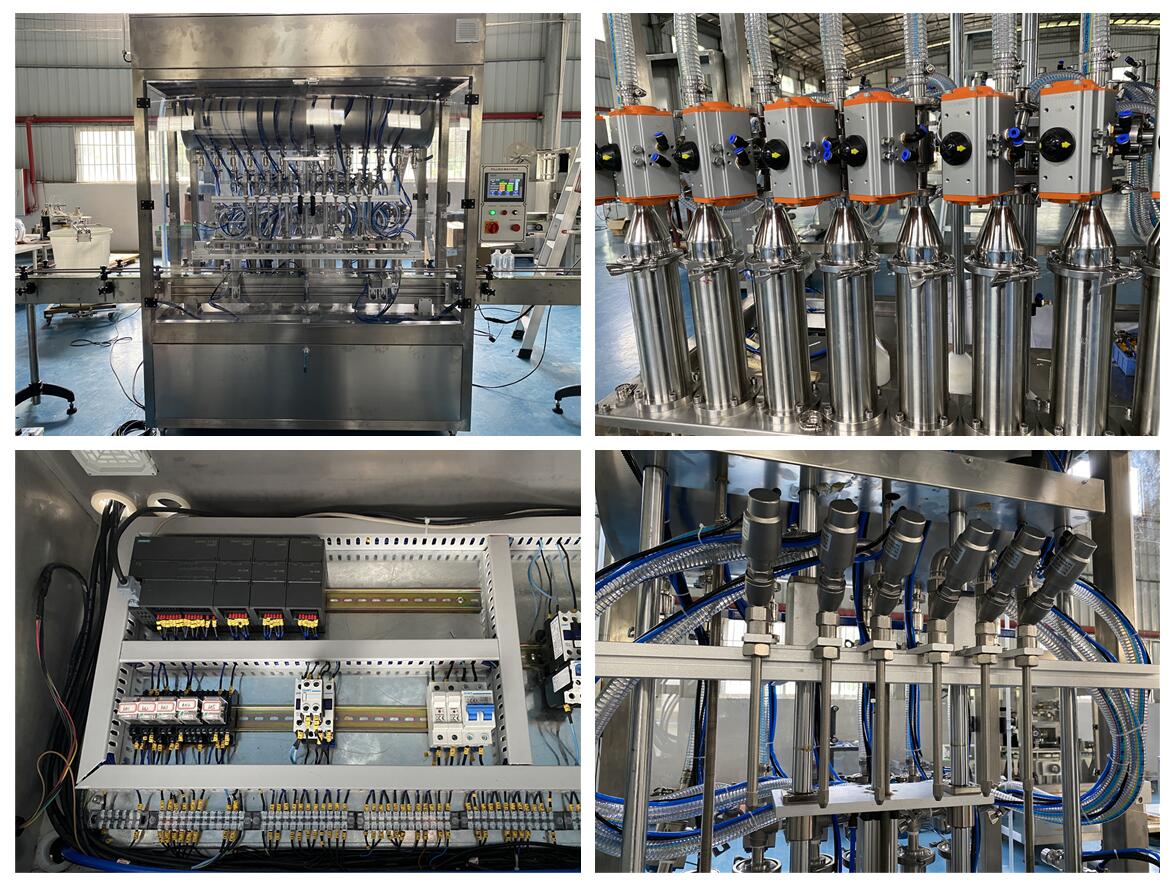

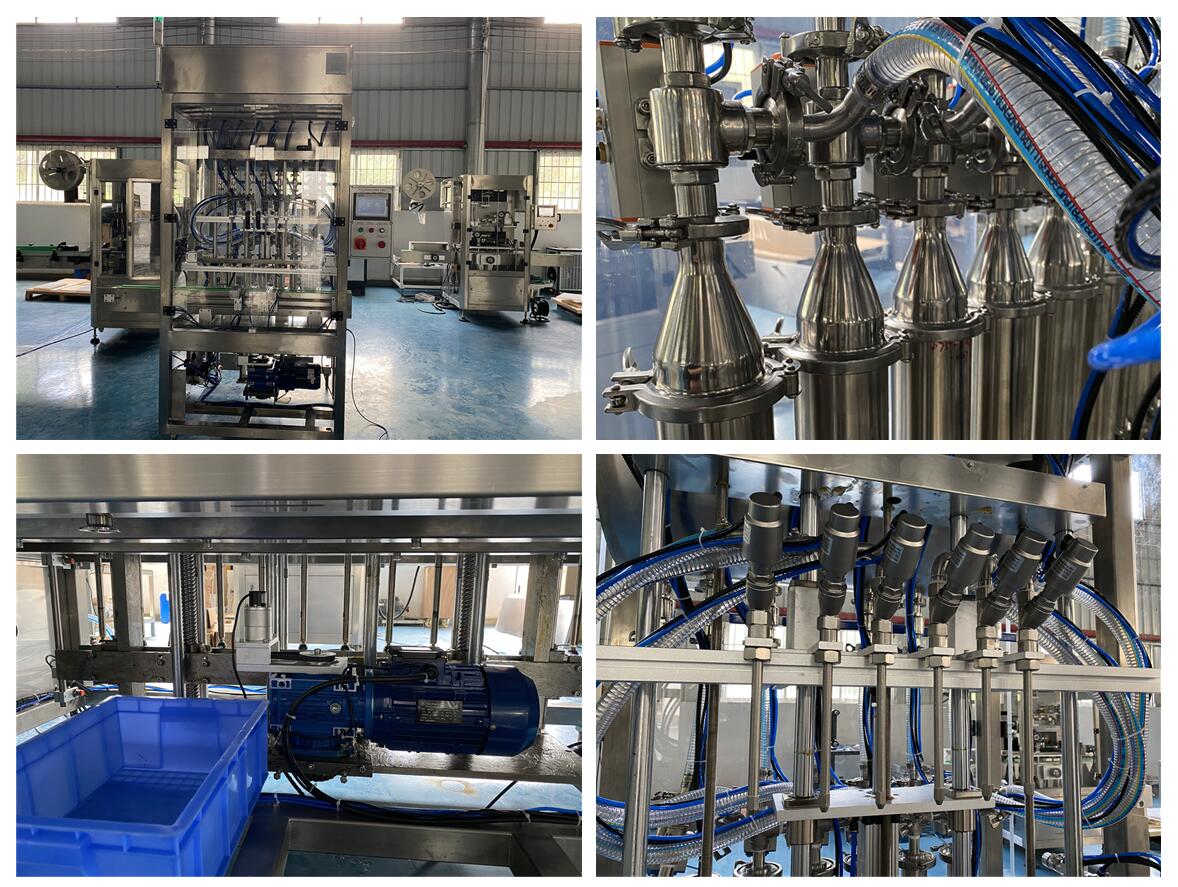

- Product name：Linear pistons servo drived filling machines
- Model No：AXGZ-SS-12B
- Features：
Application: This type of filler is best suited for liquids with low to medium viscosity. liquids with solid particulates not exceeding 1/16″ can also be filled. This machine is the choice in handling very foamy products at higher speeds. Examples: Sauces, syrups, light gels and shampoos, foamy cleansers and chemicals, water and other non carbonated aqueous beverages. Advantages: High performance, easy to clean, easy to operate, expandable at low cost. Offers greatest flexibility at lowest cost, The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler’s master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
AXGZ-SS-12B Computer servo filling machine
Max filling speed
Filling 200ml, 4000~4500 pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property
Applicable bottle diameter size
Φ20≤D≤Φ100mm
Applicable bottle height size
30≤H≤300mm
Filling dose
100~1000ml
Filling accuracy
±1%
Voltage
AC220V, single phase, 50/60HZ
Power
3.0KW
Working pressure
0.6MP
Air consumption
600L one hour
Net weight
1200Kgs
Machine size(L*W*H)
2000*1200*2250mm
Machine direction
From left to right
Operation process
Put products on conveyer—>Block bottles—> sensor count the empty bottles—>12 bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles
