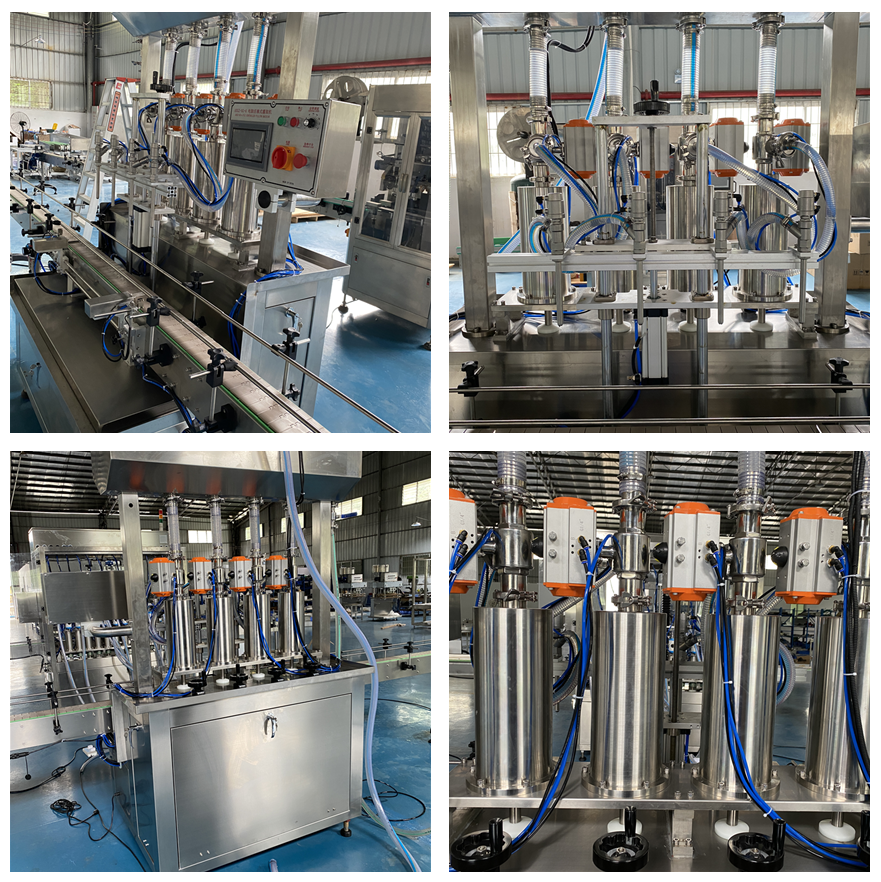

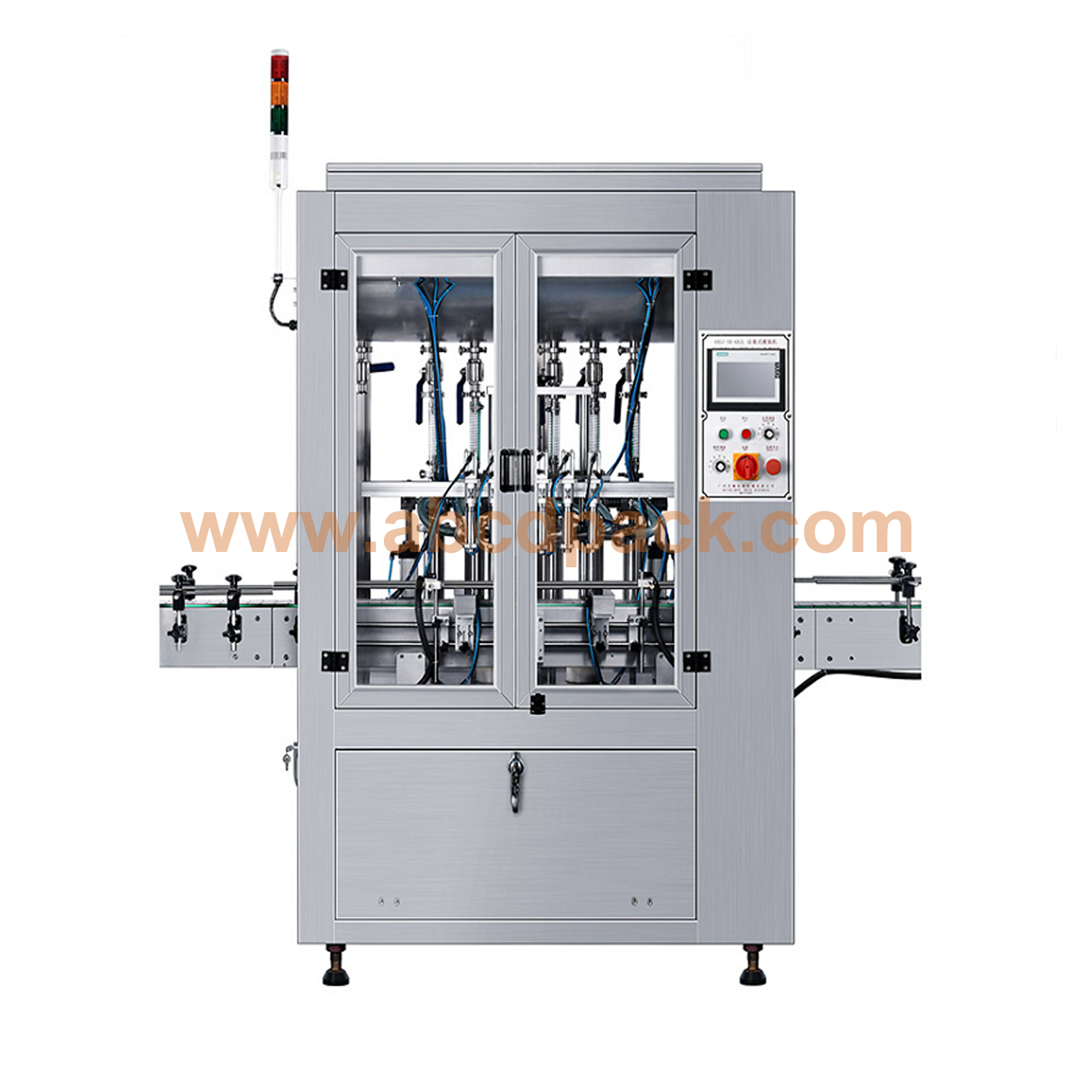

- Product name：Cylinder Drived Pistons Filling Machines
- Model No：AXGZ-SG
- Features：
Product Characters: 1. This filling machine is applied to liquid and cream filling. 2. Especially suitable for water-based liquid and oil filling . 3. Adopting Siemens PLC and easy operation display. 4. Adopting cylinder drive system. 5. Adopting pistons system 6. Adopted stainless steel (SUS304) 7. Easy set filling volume on display

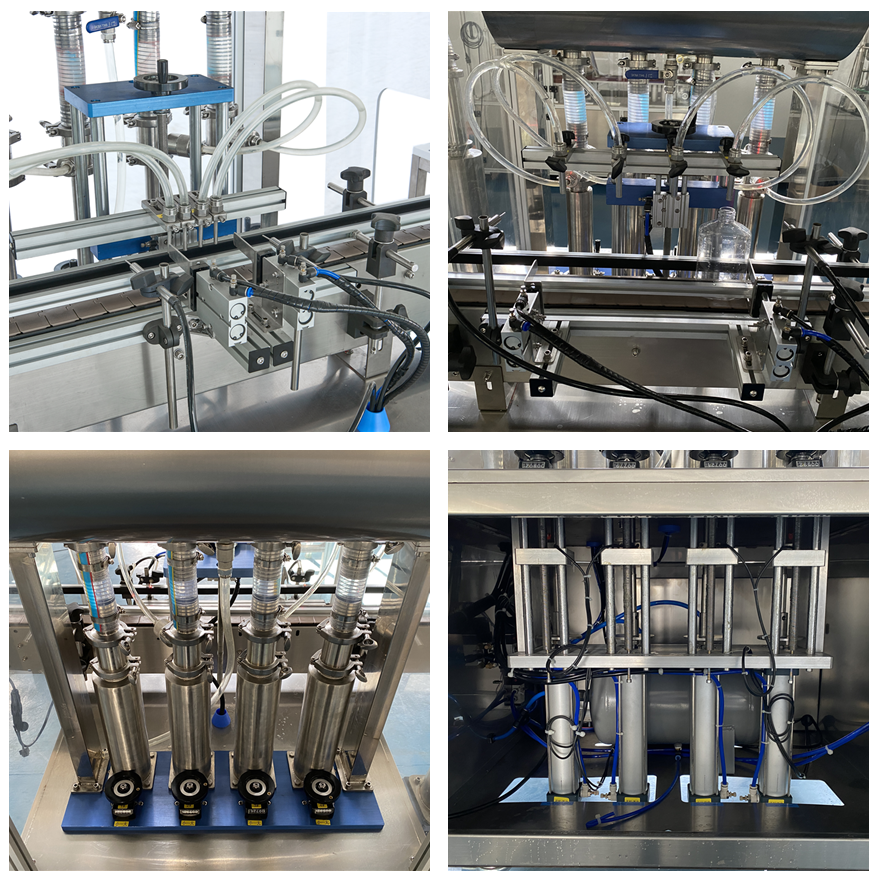

Product specifications
Main Technical Parameters ：
Data sheets
Details
Name and model
AXGZ-SG-4
AXGZ-SG-4B
AXGZ-SG-6
AXGZ-SG-6B
Max filling speed (pcs/hour)
1500~2000
1500~2500
Air consumption (L/hour)
1200
1600
Net/gross weight (Kgs)
500/700
600/800
Machine size(L*W*H)
2000*1200*2100mm
Bottle diameter size
Φ20 ≤D≤Φ100mm
Applicable bottle height size
30≤H≤300 mm
Filling dose
100~ 1000ml
Filling accuracy
±1％
Voltage
AC220V, 50/60HZ
Power
1.0KW
Working pressure
0.6MP
Machine direction
From left to right
Operation process
Put products on conveyer—>Block bottles—> sensor count the empty bottles—> bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles
