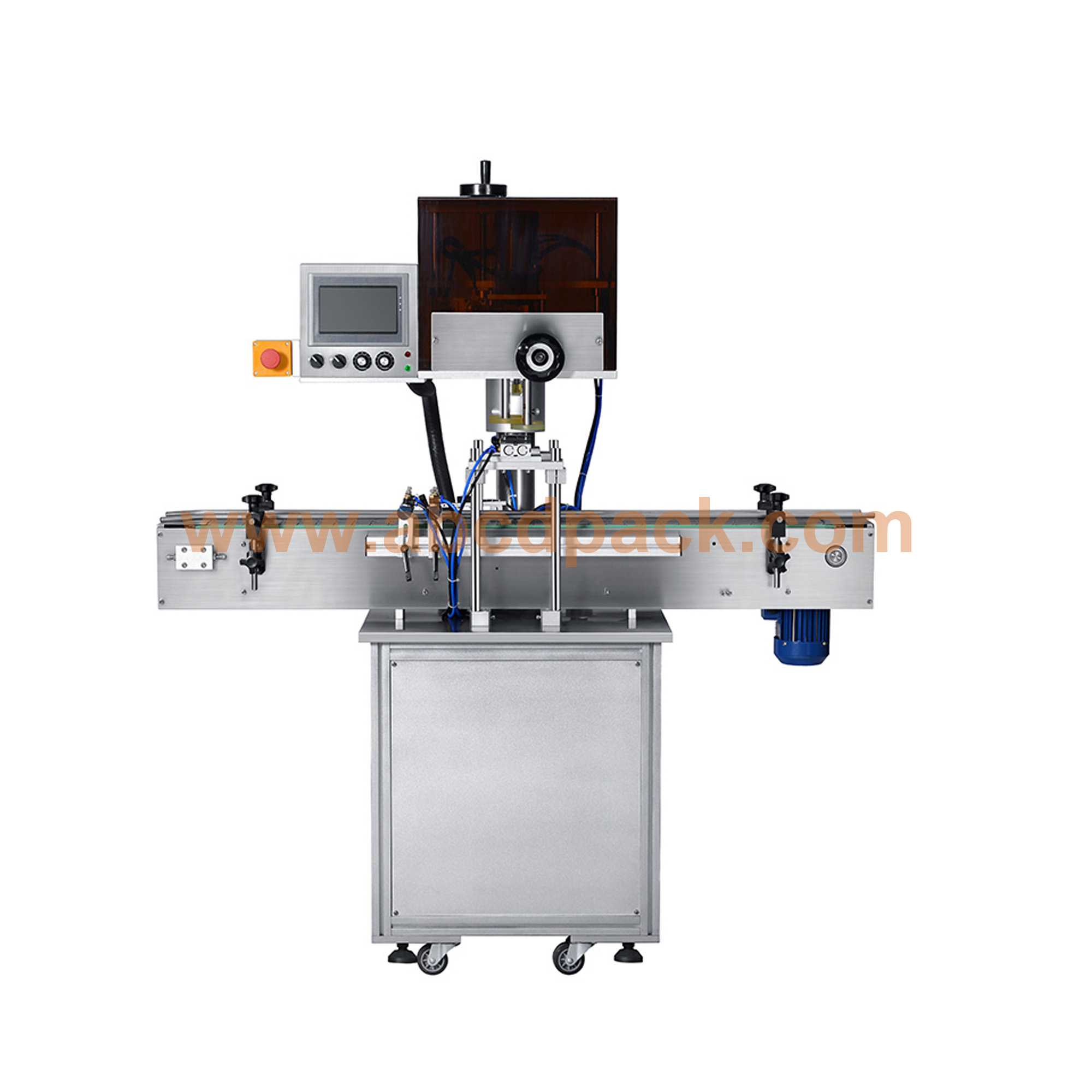

Product name:Torque control auto capping machine
Model No:XGS-100B
Features:
Product Description 1. This machine is suitable for containers and covers of various geometric shapes. 2. Servo torque control. 3. Touch screen control capping time. 4. Do not damage the cap.

Product specifications

Main Technical Parameters

Data sheets

Details

Name and model

XGS-100B   Automatic capping machine

Closing cap motor

Panasonic servo motor

Cap closing speed

0~50 caps/minute

Applicable cap size

Φ20mmDΦ80mm

Applicable bottle

Φ20mmDΦ100mm

Applicable bottle height size

40mmH300mm

Power

1200W

Voltage

AC220V, single phase, 50/60HZ

Working pressure

0.6MP

Air consumption

600L one hour

Machine size(L*W*H)

1500*700*1600mm

Machine direction

From left to right

Operation process

Products on conveyor —>put cap manual or feed cap automatically—>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish
