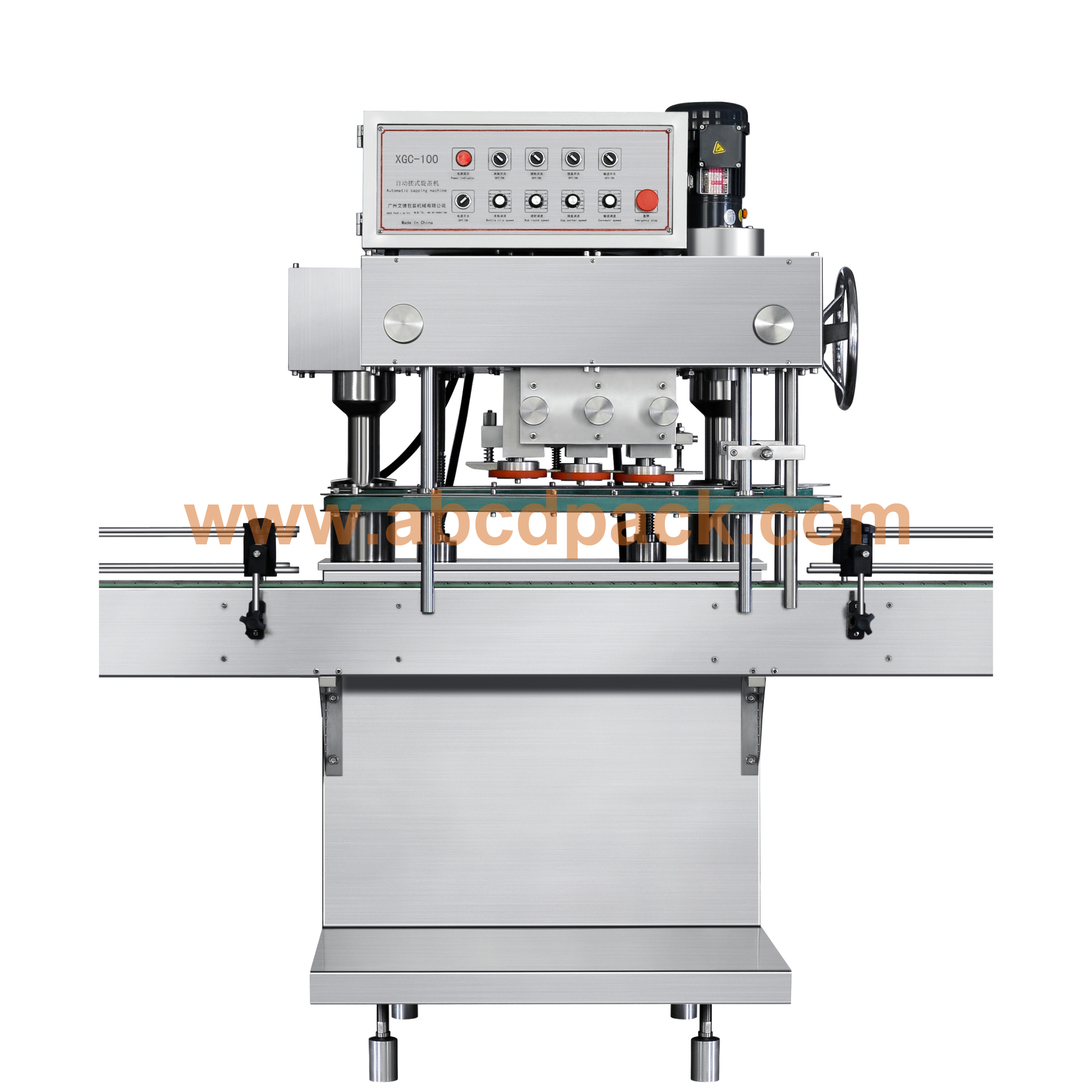

- Product name：On line auto capping machine without cap sorting device
- Model No：XGC-100
- Features：
Product Description 1. With 6 rolls turn cap, fast screwing. 2. Only need to adjust the timing belt, the distance between the cap wheel and the height of the frame to adapt to the bottle of various specifications within the applicable range without replacing parts. 3. Suitable for all kinds of high and low bottles, the bottles can be round, square, oblate or flat.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
XGC-100 Automatic cap closing machine
Closing cap motor
Gear motor
Cap closing speed
0~100 caps/minute (according customer cap sample sizes)
Applicable cap size
Φ20≤D≤Φ80mm
Applicable bottle size
Φ20mm≤D≤Φ100
Applicable bottle height size
50mm≤H≤280
Power
1.5KW
Voltage
AC220V, single phase, 50/60HZ
Working pressure
Not need compressed air
Net weight
400Kgs
Machine size(L*W*H)
1150*1000*1800mm
Machine direction
From left to right
Operation process
Products on conveyor —>caps sorted automatic or manual—> closing by six rubber rolls—> finish
