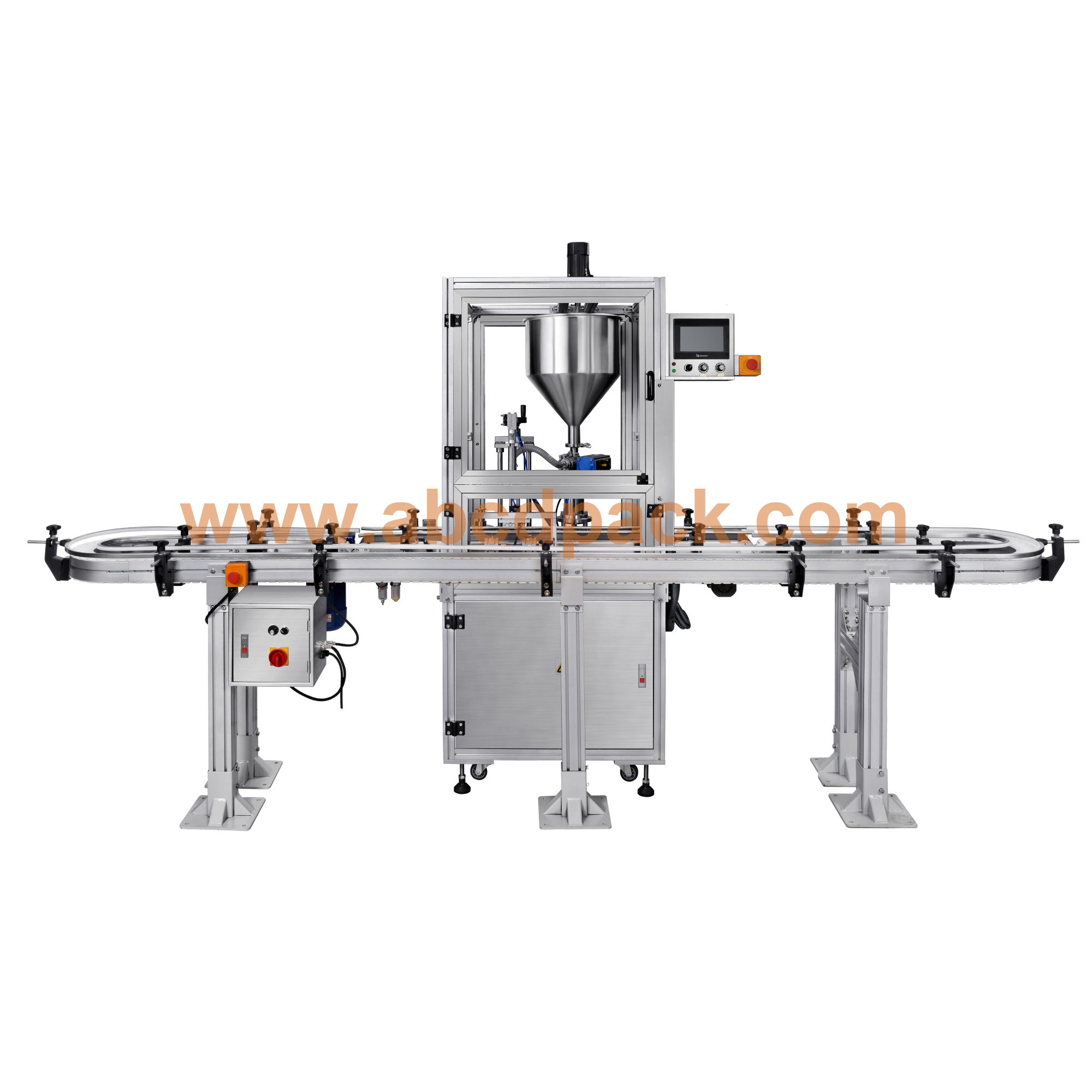

- Product name：Jar filler with flexible conveyer
- Model No：AXGZ-SG-1B
- Features：

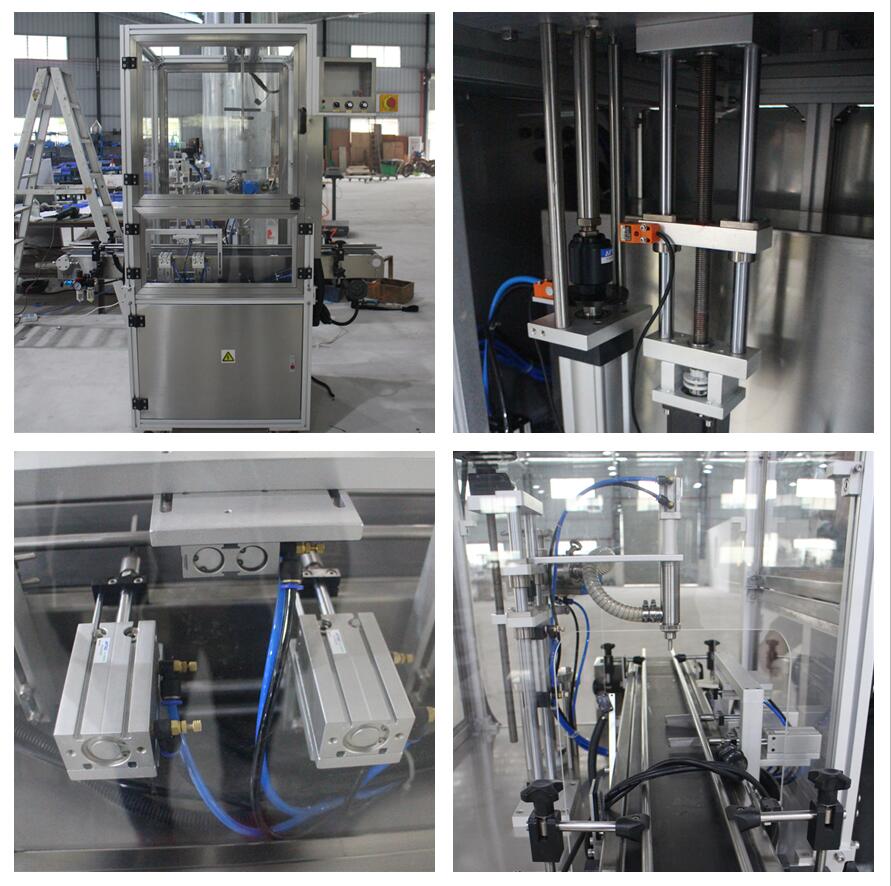

The AXGZ-SG-1B filling machine is easy to fill and adjust. It can fill liquid and paste with a certain viscosity. The filling dose can be directly adjusted in the touch screen, and the adjustment is convenient and the adaptability is good. The cylinder can be changed to achieve high-precision filling of various filling quantities.
Product specifications
Main Technical Parameters ：
|
nozzle |
1 nozzle |
|
Filling volume |
20-1000ml (two piston size) |
|
speed（B/h） |
500-900 bottles |
|
Conveyer hight |
850-900mm |
|
Conveyer width |
140mm |
|
Bottle neck |
≥Ф12 |
|
Accuracy |
20ml-100ml ≤ ±1ml |
|
Required air |
0.55Mpa~0.65Mpa |
|
Require power supply |
AC 220V; 50/60HZ |
|
monitor rate |
0.5KW |
|
Dimensions |
1500mm（L）*800mm（W）*2000mm（H） |
