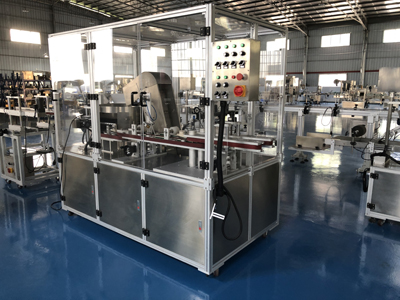

Bottle unscrambler

Product name：Bottle unscrambler

Model No：ALBG-300

Features：

Product Description
1. It is suitable for automatic transmission of round and square bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, automatic feeding, improving efficiency; can be applied to the intermediate connection of the assembly line as a buffer platform. Reduce the length of the conveyor belt.
2. The applicable bottle range can be adjusted freely. The bottle conveying speed is 30~100 bottles/min, and the speed can be adjusted to facilitate production arrangement.

Product specifications

Main parameters of the machine

Data sheets	Details
Name and model	ALBG-300 auto bottle unscrambling machine
Sorting speed	30~100pcs/minute
Applicable bottle	Φ20mm≤D≤Φ120mm
Applicable bottle height size	50mm≤H≤200mm
Power	1500W
Voltage	AC220V, single phase, 50/60HZ
Working pressure	need compressed air: 0.5~0.6Mpa
Oversize (LWH)	225018501850mm
Net weight	550kgs
